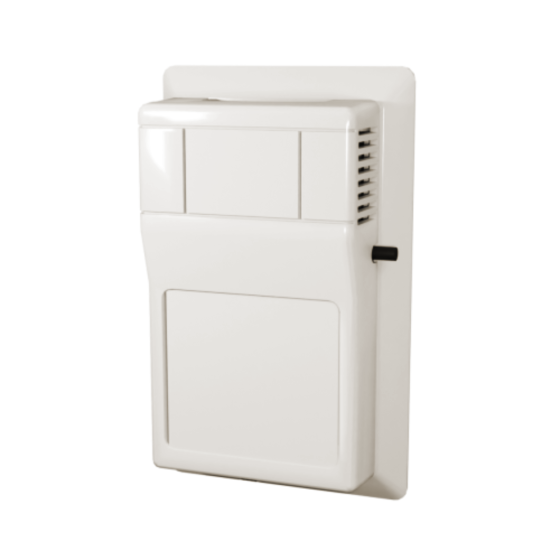

Type II Room Thermistor with Override 10 kΩ (RJ12)

FEATURES

The ACI Thermistor Room Series combines option flexibility which includes four-way air flow design to minimize self-heating to the sensor. This unit is designed to be mounted over a single gang junction box or hole in the wall using drywall anchors. Screw terminal blocks are available for making all connections to your building management system (network). An optional 3.175 mm (1/8 in) Black foam pad with pressure sensitive adhesive is available to insulate the sensor from thermal drafts within the wall or wall surface. A 1/16 in Hex driver is needed to secure the cover from being easily removed.

• The ACI Thermistor Room is covered by ACI’s Five Year Limited Warranty.

SPECIFICATIONS

• Sensor Type: Thermistor
• Sensor Curve: Non-Linear, NTC (Negative Temperature Coefficient)
• Number Temperature Sensing Points: One
• Sensor Output at 25 ºC (77 ºF): 10 kΩ nominal
• Accuracy 0 °C to 70 °C (32 °F to 158 °F): ±0.2 °C (±0.36 °F)
• Response Time (63% Step Change): 10 seconds nominal
• Power Dissipation Constant: 3 mW / °C
• Operating Range: 1.5 °C to 50 °C (35 °F to 122 °F)
• Storage Temperature Range: -40 °C to 65 °C (-40 °F to 149 °F)
• Operating Humidity Range: 10 % to 95 % RH, non-condensing
• Connections: Screw Terminal Blocks
• Wire Size: 1.31 mm2 (16 AWG) to 0.129 mm2 (26 AWG)
• Terminal Block Torque Rating: 0.5 Nm minimum; 0.6 Nm maximum
• Enclosure Material | Color: ABS Plastic, Beige UL94-HB
• Agency Approvals: CE, UKCA, RoHS2, WEEE
