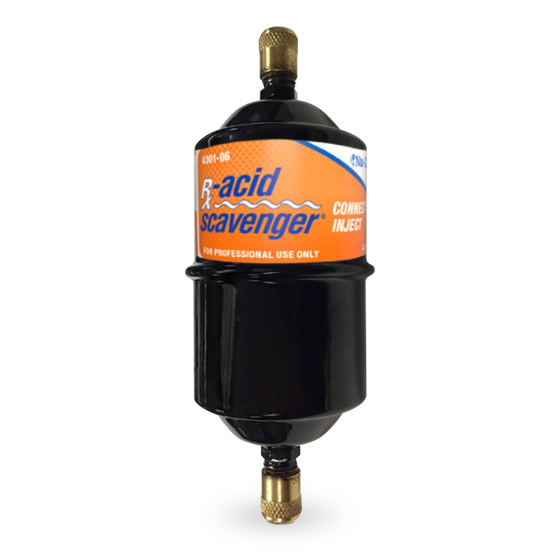

Nu-Calgon Rx-Acid Scavenger Connect Inject

APPLICATIONS

Acid neutralizer for air conditioning & refrigeration systems:
• For compressor burnout
• For system maintenance
One kit for all oils. Use with:
• Mineral oil
• Alkylbenzene oil
• POE oil
• PVE oil

FEATURES & BENEFITS

• Eliminates acid build-up in A/C and refrigeration systems
• Protects against future acid circulation
• Helps prevent compressor burnout
• Compatible with all oils and refrigerants (except ammonia)
• System safe - leaves no harmful by-products
• Rx-Acid Scavenger Connect Inject uses a quick one-time disposable injector
• Connect Inject version uses new formula to improve acid scavenging rate in POE lubricant systems
• The Rx-Acid Scavenger family of products provides a convenient way to neutralize or “scavenge” acid in refrigeration, air conditioning systems after burnouts or during normal on-going system maintenance. Normal dosage treatment of any Rx-Acid Scavenger product will address up to one gallon of system oil. All Rx-Acid Scavenger products are formulated for use with all lubricants - mineral, alkylbenzene, polyol ester (POE) and polyvinyl ether (PVE) lubricants. The traditional Rx-Acid Scavenger product uses a two fluid ounce treatment, whereas the new Rx-Acid Scavenger Connect Inject uses a new formulation to improve the acid scavenging rate in POE and PVE lubricant systems.

DIRECTIONS

• Make sure system is running and low side and high side service ports are properly identified. If unit is a heat pump, be sure it is in cooling mode. Remove caps from the Connect Inject.
• Make sure isolation valve on Connect Injector (4155-01) is turned off and connect to low side service port. Barely screw on Injector, briefly open valve to purge hose and then tighten.
• Connect high side (red) line of manifold gauge set to the high side service port. Briefly crack open high side manifold valve to purge air out of the yellow hose. Close high side manifold valve, then quickly tighten yellow hose fitting to the Rx-Acid Scavenger Connect Inject.
• Open isolation valve on Connect Injector. Over the next minute, with the vessel in a vertical position, slowly modulate high pressure through injector by opening high side manifold valve so product flows into system. Close manifold valve and allow a few seconds for Injector to stabilize to low side pressure.
• Remove manifold and Injector from the system service ports and replace caps.
• Remove Connect Injector Tool so it can be used for the next installation – do not discard. Properly discard black colored Injector.
