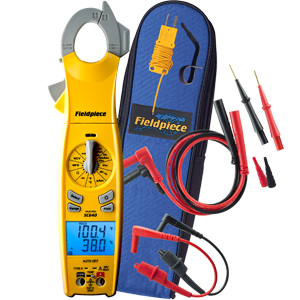

Fieldpiece® Dual Display True RMS Swivel Clamp Meter 400A In-Rush

APPLICATIONS

The SC640 clamp meter is packed with more features and measurements than any clamp meter in the HVACR industry. The loaded SC640 features lead storage, a swivel head, test lead holder, heavy duty magnetic strap, jaw flashlight, and a backlight on the dial so you can easily choose the right measurement in poorly lit spaces. Plus the SC640 hosts all the electrical measurements HVACR pros use everyday, along with features like True RMS, Inrush current, capacitance, temperature, duty cycle, and microamps DC.

FEATURES & BENEFITS

• Display: 5000 count dual display
• Backlight: 60 second duration with auto-off. Blue color
• Overrange: (OL) or (-OL) is displayed
• Measurement rate: 3.3 times per second, nominal
• Zero: Automatic
• Operating environment: 32°F to 122°F (0°C to 50°C) at <70% relative humidity
• Storage temperature: -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed)
• Accuracy: Stated accuracy @ 73°F±9°F (23°C±5°C), <75%RH
• Temperature coefficient: 0.1 x (specified accuracy) per °C [0°C to 19°C (32°F to 66°F), 28°C to 50° C (82°F to 122°F)]
• APO (Auto Power Off): Approx. 30 minutes
• Power: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22
• Battery life: 100 hours typical alkaline
• Low battery indication: Battery icon blinks and “LO.bt” is displayed when the battery voltage drops below the operating level
• Dimensions: 287.5mm(H) x 79.5mm(W) x 50.0mm(D)
• Weight: Approx. 450g including battery
• Altitude: Up to 6562 ft (2000m)
• Overload protection: 600 VDC or 600VAC rms unless otherwise stated
• Test leads: Use UL listed test leads that comply to UL61010-031 rated CATIII 600V or above
• Included test leads are gold-plated and have removeable safety caps

INCLUDES

• SC640 Meter
• ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath
• ATB1 Wrap Tab Type K Thermocouple
• ASA2 Short Alligator Lead Extensions
• Velcro Strap
• 9V Battery
• ANC7 Padded Case
