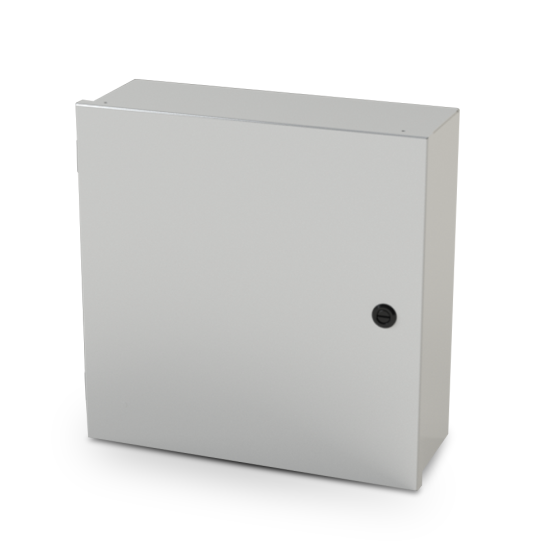

SCE-16N1606LP NEMA-1 Enclosure 16 in. x 16 in. x 6 in.
Item
SCE-16N1606LP
APPLICATIONS
Designed to house electrical controls, instruments and components in areas that do not require oil, water and dust tight protection.
FEATURES & BENEFITS
• Height: 16.00 in.
• Width: 16.00 in.
• Depth: 6.00 in.
• 0.048 In., 0.063 In. & 0.075 In. carbon steel depending on enclosure size.
• Spot weld construction.
• 1/4-20 Standoffs provided for mounting optional panels.
• Doors open 180 degrees.
• Black quarter turn latches.
• Latches are opened or closed with a screwdriver.
• Ground stud on door.
• Mounting holes in back of enclosure.
• Subpanel mounting hardware.
• Butt Hinge – Black
• NEMA Type 1
• UL Listed Type 1
• CSA Type 1
• IEC 60529
• IP 30
• ANSI-61 gray powder coating inside and out. Optional sub-panels are powder coated white.
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 18 | Exterior Dimensions (D) (inches) | 16.000000 | Exterior Dimensions (W) (inches) | 16.000000 | Exterior Dimensions (H) (inches) | 6.000000 | Shipping Weight (lbs) | 18.000000 |
