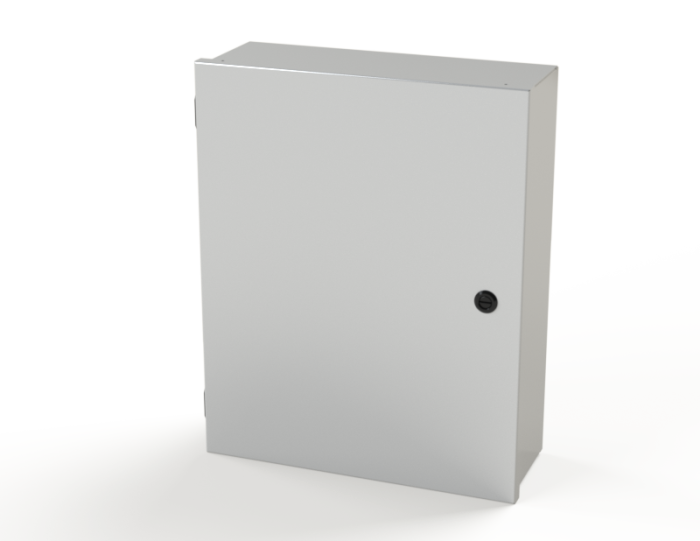

Single-Door Wall-Mount Enclosure, Carbon Steel, 20" x 16" x 6" (NEMA 1)
FEATURES
Designed to house electrical controls, instruments, and components in areas that do not require oil, water and dust tight protection.
• Spot weld construction• Standoffs are provided for mounting optional subpanels.• Butt hinge• Doors open 180°• Black, 1/4-turn latches• Latches are opened or closed with a screwdriver.• Ground stud on door and body• Mounting holes in back of enclosure• Subpanel mounting hardware included• Optional mounting straps are available.FINISH
• ANSI 61 gray powder coated inside and out• Optional subpanels are powder coated white.LISTINGS
• NEMA Type 1• cULus Listed Type 1• IEC 60529 IP30SPECIFICATIONS
• Item: Enclosure• Subpanel: Purchase subpanel separately• Slope Top: No• 3-Piece Assembly: No• Vented: No• NEMA Rating: 1• IP Rating: IP30• Nominal Enclosure Dimensions: 20 x 16 x 6in (HxWxD)• Enclosure Height: 20.38in• Enclosure Width: 16.38in• Enclosure Depth: 6.12in• Mounting: Wall• Integral Mounting Feet: No• Integral Mounting Flange: No• Dual Access: No• Knockouts: No• Bottom Gland Plate: No• Material: Carbon steel• Color: ANSI 61 gray• Finish: Powder coat• Cover Type: Single-door• Hinge Type: Butt hinges• Number of Hinges Per Door: 2• Latch Type: 1/4-turn semi-flush latch• Number Of Latches: 1• Shelf: No• Padlockable: No• Keylocking: No
| Safety Standards |
| California Prop 65 |
Yes |
Hazardous Material |
No |
| Weights and Dimensions |
| Operating Weight (lbs) |
24 |
Exterior Dimensions (D) (inches) |
20.000000 |
Exterior Dimensions (W) (inches) |
16.000000 |
Exterior Dimensions (H) (inches) |
6.000000 |
Shipping Weight (lbs) |
24.000000 |
