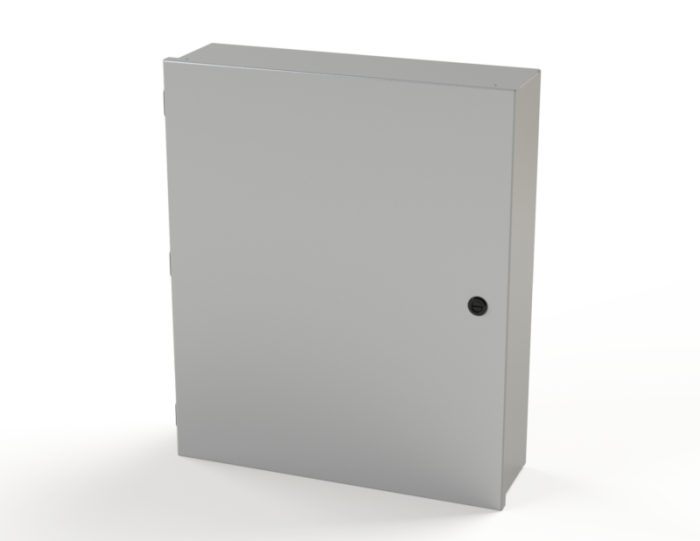

Single-Door Wall-Mount Enclosure, Carbon Steel, 24" x 20" x 6" (NEMA 1)

Item
SCE-24N2006LP
  • California Prop 65

FEATURES

Designed to house electrical controls, instruments, and components in areas that do not require oil, water and dust tight protection.

  • • Spot weld construction
  • • Standoffs are provided for mounting optional subpanels.
  • • Butt hinge
  • • Doors open 180°
  • • Black, 1/4-turn latches
  • • Latches are opened or closed with a screwdriver.
  • • Ground stud on door and body
  • • Mounting holes in back of enclosure
  • • Subpanel mounting hardware included
  • • Optional mounting straps are available.

  • FINISH

  • • ANSI 61 gray powder coated inside and out
  • • Optional subpanels are powder coated white.

  • LISTINGS

  • • NEMA Type 1
  • • cULus Listed Type 1
  • • IEC 60529 IP30

  • SPECIFICATIONS

  • • Item: Enclosure
  • • Subpanel: Purchase subpanel separately
  • • Slope Top: No
  • • 3-Piece Assembly: No
  • • Vented: No
  • • NEMA Rating: 1
  • • IP Rating: IP30
  • • Nominal Enclosure Dimensions: 24 x 20 x 6in (HxWxD)
  • • Enclosure Height: 24.38in
  • • Enclosure Width: 20.38in
  • • Enclosure Depth: 6.12in
  • • Mounting: Wall
  • • Integral Mounting Feet: No
  • • Integral Mounting Flange: No
  • • Dual Access: No
  • • Knockouts: No
  • • Bottom Gland Plate: No
  • • Material: Carbon steel
  • • Color: ANSI 61 gray
  • • Finish: Powder coat
  • • Cover Type: Single-door
  • • Hinge Type: Butt hinges
  • • Number of Hinges Per Door: 3
  • • Latch Type: 1/4-turn semi-flush latch
  • • Number Of Latches: 1
  • • Shelf: No
  • • Padlockable: No
  • • Keylocking: No
  • Safety Standards
    California Prop 65 Yes
    Hazardous Material No
    Weights and Dimensions
    Operating Weight (lbs) 35
    Exterior Dimensions (D) (inches) 24.000000
    Exterior Dimensions (W) (inches) 20.000000
    Exterior Dimensions (H) (inches) 6.000000
    Shipping Weight (lbs) 35.000000
