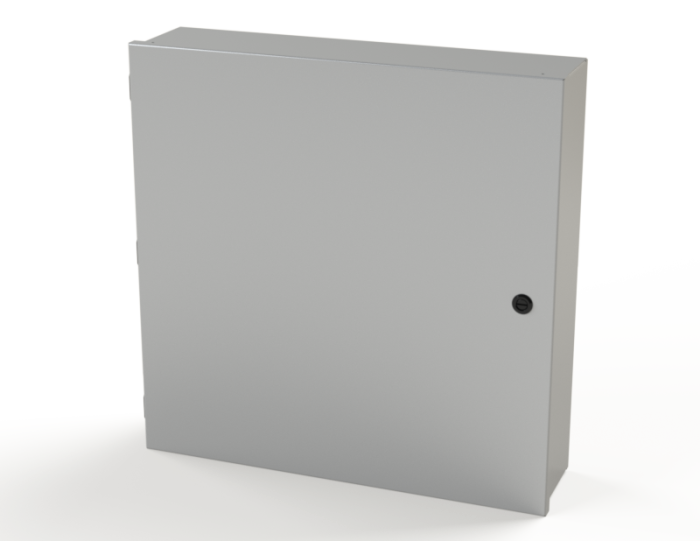

Construction
- 0.048 In., 0.063 In. & 0.075 In. carbon steel depending on enclosure size.
- Spot weld construction.
- 1/4-20 Standoffs provided for mounting optional panels.
- Doors open 180 degrees.
- Black quarter turn latches.
- Latches are opened or closed with a screwdriver.
- Ground stud on door.
- Mounting holes in back of enclosure.
- Subpanel mounting hardware.
- Butt Hinge - Black
Application
Designed to house electrical controls, instruments and components in areas that do not require oil, water and dust tight protection.
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 45 | Exterior Dimensions (D) (inches) | 24.000000 | Exterior Dimensions (W) (inches) | 24.000000 | Exterior Dimensions (H) (inches) | 6.000000 | Shipping Weight (lbs) | 45.000000 |
