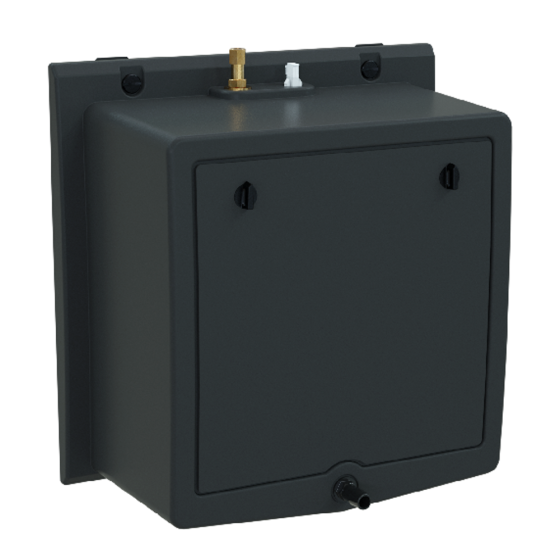

Sentinel Series Integrated Humidifier for Models D025, DP25, DS025, and SP25

FEATURES

Integrated wine cellar humidifiers add moisture to the air at the wine cellar conditioning unit instead of directly in the wine cellar. These humidification systems mount directly to either side of our self-contained ducted cooling systems or ductable split cooling units and add moisture directly into the air stream, with suggested humidity control up to a maximum of 60% RH. For 60Hz.

To achieve relative humidity above 60% RH, we recommend using a Wine Guardian standalone humidifier, which is located inside your wine cellar and will add moist air directly to your wine cellar.

Wine Guardian integrated humidifier powered directly from Wine Guardian® unit; no separate power source required. Can be integrated with the following systems: D025, DP25, DS025, and SP25. Not mountable on non-Sentinel systems.

Integrated
The Integrated Humidifier attaches directly to a Wine Guardian Ducted or Ducted Split system in a room adjacent to the cellar, meaning that the humidifier will remain out of sight in the wine space.

Flexible Installation
The humidifier can be installed on either side of the ducted or ducted split system.

Easy Access
Quarter-turn fasteners allow the humidifier to be removed or attached onto a Sentinel Series system with just 2 clicks.

Efficient Design
The humidifier is powered directly from the unit so a separate power source is not necessary.

SPECIFICATIONS

• Weight: 10 lbs
• Dimensions: 20 × 16 × 14 in
• Line Frequency: 60 Hz
• Capacity at 60°F (16°C): 0.42 lbs/hr
• Capacity at 100°F (38°C): 1.0 lb/hr
• Power Requirements: 24 Volt
• Model: Sentinel Series Integrated Humidifier for Models D025, DP25, DS025, and SP25
