FEATURES & BENEFITS

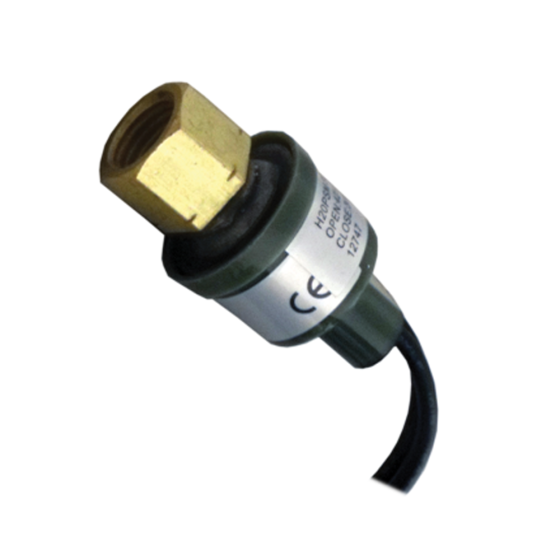

• High pressure switch opens on pressure rise
• Rated Voltage 24/120/240 VAC @ 50/60 Hz
• Life at rated load: 100,000 cycles
• ¼" SAE 45° female flare fitting with valve core depressor
• Snap acting stainless steel hermetically sealed sensor
• Small size and light weight for direct mounting
• Excellent set point repeatability/stability
• Wire is 18 AWG, 18" long
• Tolerance: +/- 15 PSI
• Open PSI: 400 PSI
• Close PSI: 300 PSI
• Burst Pressure: 2800 PSI
• Maximum Operating Pressure: 700 PSI
• Maximum LRA: 17.4 Amps @ 240VAC
• Maximum Temperature: -31°F to 149°F (-35°C to 65°C)
• Maximum LRA: 34.8 Amps @ 120VAC
• Maximum FLA: 2.9 Amps @ 240VAC
• Maximum FLA: 5.8 Amps @ 120VAC
CROSS REFERENCE
• Mars® - 33358
• Mars® - 33370
• Johnson Controls® - P100CA1C
• Johnson Controls® - P100CP1C
• Ranco® - MPH7107
• Robertshaw® - 3101202
• Robertshaw® - 3100151
• Robertshaw® - MG21-112
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.09 | Exterior Dimensions (D) (inches) | 20.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 0.500000 |
