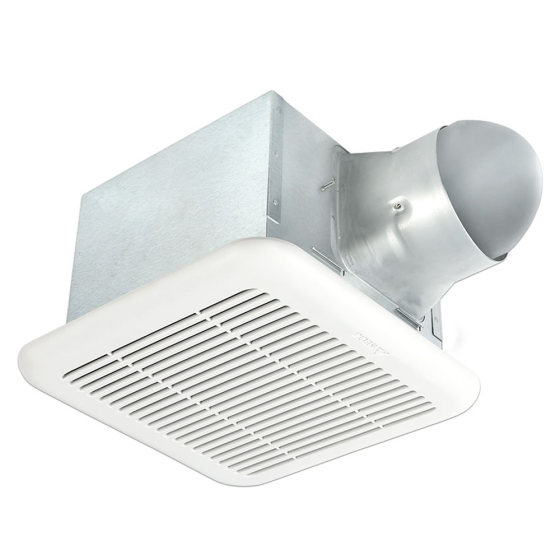

The exceptional reliability of Delta’s Brushless DC Motor is combined with control options including adjustable continuous low speed down to 30 CFM. The Delta Breez model SIG80-110H has been awarded Energy Star® Certified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and quiet operation at less than 0.3 Sones at 0.1” static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 8.2 Watts with efficiency rating of 15.3 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
FEATURES & BENEFITS
• ENERGY STAR® Certified with innovative brushless DC motor technology • Perfectly quiet operation at less than 0.3 Sones • Full speed adjustable, 80 or 110 CFM • Allows fan to operate in full speed mode or humidity control mode by manual switch • For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed. When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0, 30, 50, 60, or 80 CFM) • Adjustable humidity set points between ~50% to ~90% RH • Includes 6" to 4" duct reducer • Energy efficiency at 15.4 CFM/Watt • Blue and amber LED indicator lights to show humidity sensor and full speed modes • Airflow (CFM @ 0.1 SP): 80/110 • Sones: 0.3 • Power Watts: 8.2 • Efficiency (CFM/Watts): 15.3 • Current (Amps): 0.38 Max • Power Rating (Vac/Hz): 120/60
DC Motor/Blower • Power rating of 120 volts/60Hz • DC brushless motor engineered to run continuously • Motor equipped with thermal cutoff fuse • Removable with permanently lubricated plug-in motor • Full speed adjustable, 80 or 110 CFM • For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed. When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0, 30, 50, 60, or 80 CFM) • Adjustable humidity set points between ~50% to ~90% RH • Built-in soft start function to increase bearings’ life • Automatically powers off when impeller is locked abnormally • Self-compensating motor speed for intended airflow when static pressure is encountered
Housing • Galvanized steel body • Detachable 6” diameter metal duct adapter • Includes 6” to 4” duct reducer • Built-in backdraft damper • Easy installation with expandable extension bracket
Grille • Attractive design using ABS material • Attaches directly to housing with torsion springs
LED Indicator • Blue and amber LED indicator lights to show humidity sensor and full speed modes
