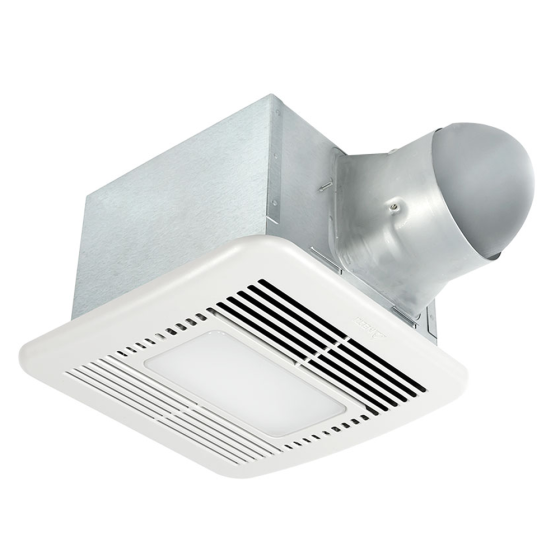

The exceptional reliability of Delta’s Brushless DC Motor is combined with control options including adjustable continuous low speed down to 30 CFM. Delta Breez model SIG80-110LED has been awarded Energy Star® Certified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and loudness rating of less than 0.3 Sones at 0.1”static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 9.7 Watts with efficiency rating of 12.7 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. LED life is 30,000 hours (compare with 10,000 hours CFL life). One 13-Watt LED main light and one 2-Watt LED night light are included. Main light output is 800 Lumens and 3000K. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.
FEATURES & BENEFITS
• Energy Star® Certified with innovative brushless DC motor technology • Perfectly quiet operation at less than 0.3 Sones • Full speed adjustable, 80 or 110 CFM • LED life is 30,000 hours (compare with 10,000 hours CFL life) • Included: (1) 13-Watt Dimmable LED light included (equivalent to a 60-Watt incandescent bulb). Dimmer switch not included, (1) 2-Watt LED night light • Main light output: 800 Lumens; 3000K; 90 CRI for high color accuracy and compliance with CEC JA8 Title 24 requirements • Includes 6" to 4" duct reducer • Energy efficiency at 13.8 CFM/Watt • Green LED indicator light to show power is on • Airflow (CFM @ 0.1 SP): 80/110 • Sones: 0.3 • Power Consumption (Watts): 9.7 • Energy Efficiency (CFM/Watts): 12.7 • Current (Amps): 0.48 Max • Power Rating (Vac/Hz): 120/60 • LED Main Light (Watts): 13 • LED Night Light (Watts): 2
DC Motor/Blower • Power rating of 120 volts/60Hz • DC brushless motor engineered to run continuously • Full speed adjustable, 80 or 110 CFM • Motor equipped with thermal cutoff fuse • Removable with permanently lubricated plug-in motor • Full speed adjustable, 80 or 110 CFM • Built-in soft start function to increase bearings’ life • Automatically powers off when impeller is locked abnormally • Self-compensating motor speed for intended airflow when static pressure is encountered
Housing • Galvanized steel body • Detachable 6” diameter metal duct adapter • Includes 6” to 4” duct reducer • Built-in backdraft damper • Easy installation with expandable extension bracket
Grille • Attractive design using ABS material • Attaches directly to housing with torsion springs
Light • 13-Watt LED main light and 2-Watt LED night light included • Main light output 800 lumens, 3000K, and 90 CRI
LED Indicator • Turn the power switch on/off to operate on/off. LED indicator will be green when power is on
