Overview

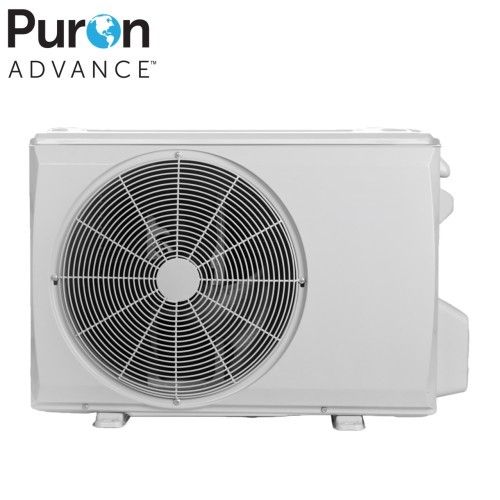

The 37MAHAQ model features premium energy efficiencies of 27.5 SEER2 and 14.8 HSPF2, making it a great choice for retrofit applications. This ENERGY STAR® certified product can provide efficient comfort to your home.
FEATURES & BENEFITS
FEATURES & BENEFITS
- 100% Heating Capacity at 5° F (-15° C)*
- Inverter Compressor
- Up to 27.5 SEER2 cooling efficiency
- Up to 14.8 HSPF2 heating efficiency
- Select sizes are ENERGY STAR® certified based on indoor unit pairing
- Available in 115V and 208/230V
- Sizes ranging from 06 to 33
- Built-in basepan heater
- Piping length 82-213 ft. depending on unit capacity and system configuration
- Refrigerant leakage detection
- Condenser high-temperature protection
- Quiet outdoor sound operation, as low as 53 decibels1
- 46° F heating mode (heating setback)
- Compatible with Puron Advance™ refrigerant. With Puron Advance refrigerant, Bryant proudly continues our century-plus commitment to environmental stewardship. It's a refrigerant that delivers a 75% decrease in global warming potential while maintaining original Puron's non-ozone depleting properties.
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
- Compatible units: 619PB High Wall, 40MBCQ Cassette, 40MBDQ Ducted, 40MBFQ Floor Console
1Quietest size within each model group during most common cooling operating condition.
2If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
*Sizes 6-33 (208/230V); 12 (115V) Dependent upon indoor unit combination.
SPECIFICATIONS
EFFICIENCY MANAGEMENT
- Energy Efficiency Up to 27.5 SEER2/up to 18 EER2/up to 14.8 HSPF2
- ENERGY STAR® Select sizes are ENERGY STAR® certified based on indoor unit pairing
COMFORT MANAGEMENT
- Cooling Operating Range -23° F up to 122° F (-25° C up to 50° C)
- Heating Operating Range -22° F up to 86° F (-30° C up to 30° C)
SOUND
- Quiet Levels as low as 53 dB(A)1
TECHNOLOGY
- Compressor Inverter
- System Capacity 0.5 - 3 tons
- Voltage 115V (Sizes 12), 208/230V (Sizes 6-33)
AESTHETICS
- Construction Durable, heavy gauge galvanized steel
- Paint Baked-on, powder paint
- Line Length Up to 213 ft.
MODELS
- Full Model Numbers 37MAHAQ**AA1, 37MAHAQ**AA3
Bryant reserves the right to discontinue or change any specification or design without prior notice or obligation.
1Quietest size within each model group during most common cooling operating condition.
