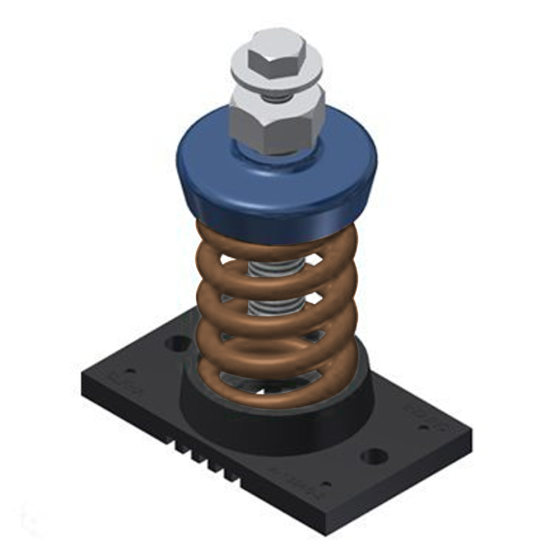

Mason Industries Single Spring Isolation Mount, 3/8", 1.33" Deflection, 125lbs.
Item
SLFH-A-125
APPLICATIONS
Spring isolators are free standing and laterally stable without any housing and complete with a molded neoprene cup or 1/4” (6mm) neoprene acoustical friction pad between the baseplate and the support. All mountings have leveling bolts that must be rigidly bolted to the equipment.
FEATURES & BENEFITS
• Rated Capacity (lbs): 125
• Rated Deflection (in): 1.33
• Mount Constant (lbs/in): 94
• Locking Cap Screw: 3/8” x 1”
• Holes for 5/16” Diameter Bolts
• Slots for 3/8” Diameter Bolts
• Spring Color: Brown
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 5.000000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 1.000000 |
