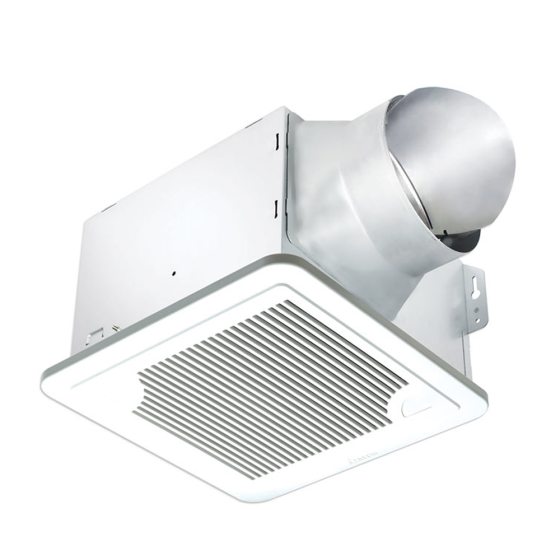

The Delta BreezSmart SMT130H ENERGY STAR® Certified Humidity Sensing Ventilation Fan delivers 130 CFM at incredibly low noise, less than 0.3 sones, while consuming 11.6 Watts of power. Delta BreezSmart is a remarkable feat for residential ventilation. Operate your near-silent ventilation fan without lifting a finger - you just might forget it’s there.
FEATURES & BENEFITS
• Energy Star® Certified with brushless DC motor technology • Perfectly quiet operation at 0.3 sones • Ceiling mount ventilating fan with humidity sensor rated for continuous running • For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed (130 CFM). When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0, 50, 70, or 90 CFM options) • Adjustable humidity set points between ~50% to ~90% RH • Blue and amber LED indicator lights to show humidity control and full speed modes • Airflow (CFM @ 0.1 SP): 50/70/90/130 • Sones: 0.3 • Power Consumption (Watts): 5.6/6.9/8.0/11.6 • Energy Efficiency (CFM/Watts): 8.9/10.1/11.2/11.2 • Current (Amps): 0.44 Max • Power Rating (Vac/Hz): 120/60
DC Motor/Blower • Power rating of 120 volts/60Hz • DC brushless motor engineered to run continuously • Motor equipped with thermal cutoff fuse • Removable with permanently lubricated plug-in motor • Built-in soft start function to increase bearings’ life • Automatically powers off when impeller is locked abnormally • Self-compensating motor speed for intended airflow when static pressure is encountered
Housing • Galvanized steel body • Detachable 6” diameter metal duct adapter • Built-in backdraft damper • Hanger bars included • Easy installation
Grille • Attractive design using ABS material • Attached directly to housing with torsion springs
LED Indicator • Turn the power switch on/off to operate on/off. LED indicator will be green when power is on
