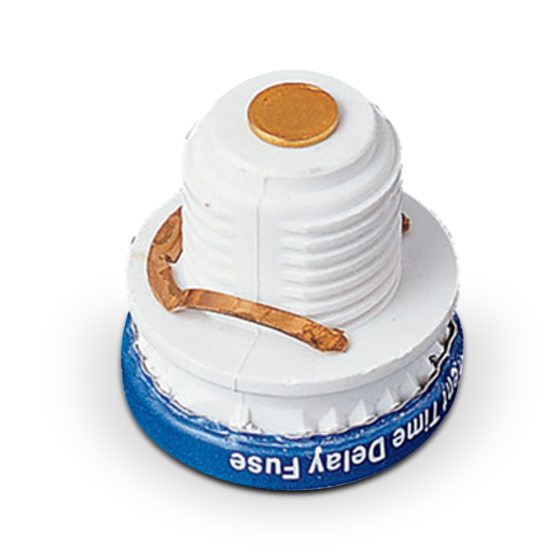

Time-Delay Type-S Plug Fuse 1.25a, 125Vac
Item
SOO11/4
APPLICATIONS
SOO Type S Plug Fuses utilize a nonmetallic threaded base and must be used with Type S adapters (SAO series). The National Electrical Code permits Edison base Plug fuses to be used for replacement purposes only. Type S fuses and adapters prevent shunting open fuses and over-fusing.
FEATURES & BENEFITS
• Voltage Rating 125 Vac
• Amperage Rating: 1.25
• Interrupting Rating: 10 kA rms symmetrical
• Approvals: UL Listed 248-11
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Amp Rating | 1.25 |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 1.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 1.000000 |
