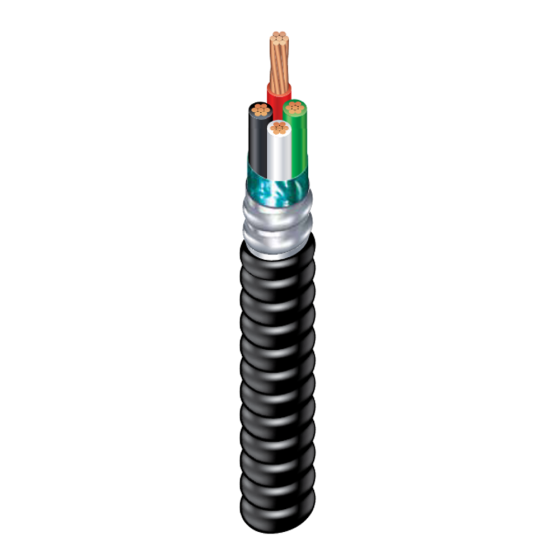

• Temperature Rating: 90°C (Dry) and 75°C (Wet), 600V, Rated Sunlight Resistant and Direct Burial • Southwire's shielded armored mini-split cable can be installed in accordance with The National Electrical Code for HVAC applications without the use of conduit and may be installed indoors or outdoors in wet locations. • Using appropriate Southwire tools for mini-split installations to reduce the chance of damage to internal wires • Conductor(s): Stranded, bare copper Class B, Soft Drawn Annealed Bare Copper per ASTM B3 and B8 • Insulation: Polyvinyl Chloride (PVC)/Nylon • Shield: Aluminum foil tape shield with 18 AWG tinned copper drain wire • Armoring: Aluminum Interlocked Armor (AIA) • Jacket: Black, PVC • ASTM B3, B8 • UL 83 - Thermoplastic Insulated Wires and Cables • UL 1569 - Metal-Clad Cables • NFPA 70 • RoHS-3
