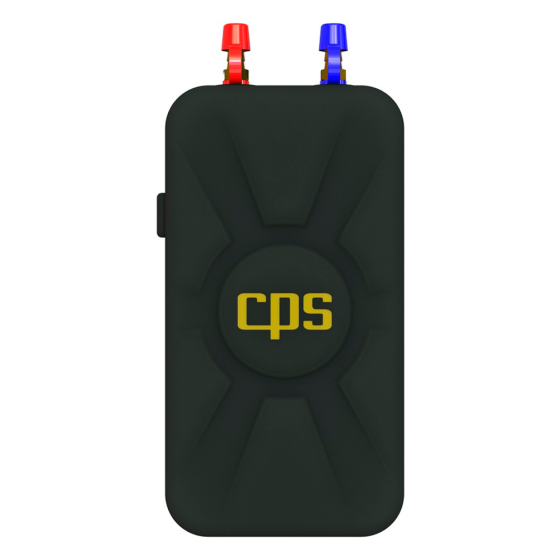

CPS® Wireless Dual-Port Pressure Meter (Manometer)

APPLICATIONS

The SPM-100 is a small, dual-port manometer accessory that, when connected to a CPS PRB-KIT (purchased separately) and paired with a mobile device running the latest CPS Link app, and can measure, record, and email 5 different pressure measurements.

FEATURES & BENEFITS

• Harnessing the power of your smartphone or tablet with a free app that provides on-screen guidance, the SPM-100 takes the guesswork out of accurately measuring static pressure!
• Simple, intuitive, and accurate readings for static pressure, pressure differential, indoor vs. outdoor pressure, system external static pressure.
• Automatically imports local weather data based on GPS location
• Easily emails professional, detailed reports
• Rugged, weather-resistant housing with hands-free magnetic holder
• Wireless Connection Range: ≤ 100 ft. (30.5m)
• Wireless Communication: Bluetooth™
• Operational temperature range: -40°F to +185°F (-40°C to +85°C)
• Operational Temperature Range Full Accuracy: -32°F to +149°F (0°C to +65°C)
• Absolute Accuracy: 0 to 65°C (32 to149°F) typical 0.04 inWC
• Battery Type: 3V CR 2450 Coin Cell Lithium Battery
• Battery Life: >500 hrs.
• Auto Power Off: 30 seconds after closing or minimizing app, or no connection
• Units of Measure: inWC, inHg, psi, mmWC, mmHg, Pa, kPa, mBar
• Resolution: 0.004 inWC
• Pressure Range: ±75 inWC
• Dual Ports (For Rubber Tubing): 1/8” ( mm) ID
• Gas Manifold : Brass
• Size (H x W x D): 5-1/8” x 2-5/8” x 7/8” ( 133 x 63 x 20 mm)
• CPS Link™: Patented modular test and measurement system technology (US Patent No. 9,043,161)
