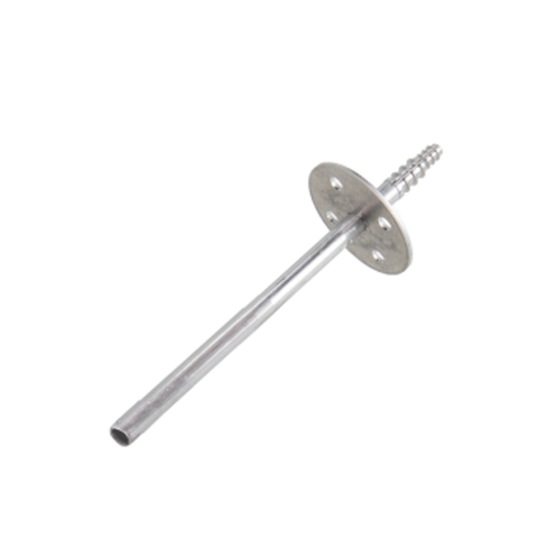

Static Pilot Tube, Aluminum, 3-1/2"
Item
SPT
FEATURES
• Tubing Connection | Tubing Size: 45° Barbed Type (6 Places), accepts 1/8” through 1/4” ID flexible plastic tubing• Probe Insertion Length & Sensing Points: (88.9 mm) | Single Point
• Tube Mounting Direction: Tip opens parallel to the air stream
• Static Tube Mounting Angle: Perpendicular to the duct (90 Degrees +/- 3 Degrees)
• Mounting Flange (Diameter): 1.50” (38.1 mm)
• Measurement Probe Hole Size (Diameter): 1/4" (6.35mm)
• Mounting Holes (Diameter): 3/16” (4.76 mm)
• Probe Material: Aluminum
• Operating Temperature Range: -40 to 185ºF (-40 to 85ºC)
• Storage Temperature Range: -40 to 185ºF (-40 to 85ºC)
• Operating Humidity Range: 0 to 90% RH non-condensing
• Product Weight: SPT-3.5“: 0.022 lbs (10g)
• Agency Approvals: RoHS2, WEEE, Reach
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 7.000000 | Exterior Dimensions (W) (inches) | 2.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 3.000000 |
