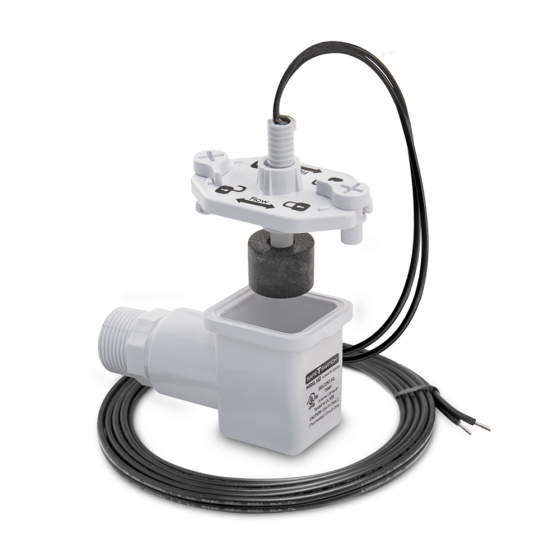

Rectorseal® Safe-T-Switch Condensate Overflow Switch 3/4", 24V
Item
SS2
APPLICATIONS
Safe-T-Switch® Model SS2 with 3/4" adaptor can be installed on the auxiliary outlet of the primary drain pan. The patented magnetic reed switch can be installed on a slope of up to 45°. The SS2 switch cap is easily removed for cleaning and servicing condensate drain lines.
FEATURES & BENEFITS
• Condensate overflow switch
• Adjustable ratcheting float level
• Magnetic reed switch
• POP Blister packaged
• 24-Volts A/C
• Maximum 1.25 Amp. Carrying Capacity
• 6ft., 18 AWG Lead Wires.
INCLUDES
• Cap/Float Subassembly (includes Stem/Wire, 2 Cam Locks, Cap, and Float)(2) Elbow
• Adaptor
• Warning Sticker
| Electrical | |
|---|---|
| Voltage | 24 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Fitting Size | 3/4" |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.3 | Exterior Dimensions (D) (inches) | 5.500000 | Exterior Dimensions (W) (inches) | 1.750000 | Exterior Dimensions (H) (inches) | 8.250000 | Shipping Weight (lbs) | 1.000000 |
