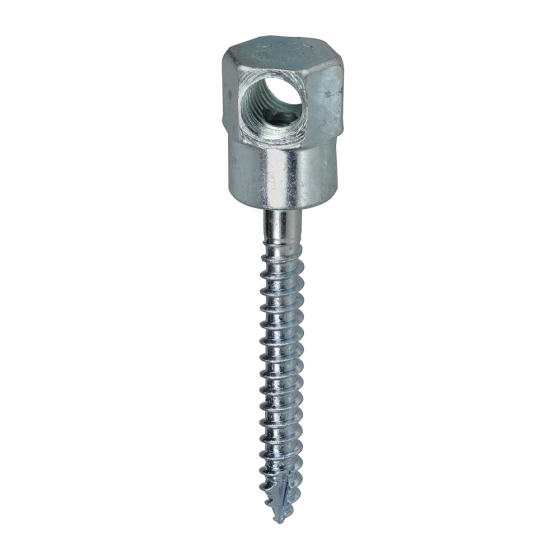

Wood Rod Hanger, Horizontal, 2-1/2 in. L, 3/8 in.
Item
SSW38SXL
APPLICATIONS
Side Mount Wood Rod Hangers are used in the sides of wood beams and columns to install threaded rod vertically. These carbon steel fasteners are manufactured with a type-17 tip and are suitable for electrical conduit and cable-tray applications, pipe hanging, fire protection, and suspension of HVAC equipment. For proper installation instructions and weight loads, reference the technical data sheet.
FEATURES & BENEFITS
• Point Style: Type 17
• Thread Type: AB
• Screw Size: 3/8'' x 2-1/2''
• Rod Size: 3/8''
• Head Diameter: 5/8''
• Shank Length: 2-1/2''
• Thread Pitch/Thread Per Inch: 3/8''-16
• Material: Carbon Steel
• Finish: Zinc Plated
• Mount Style: Side
| Specification | |
|---|---|
| Length | 2-1/2 in. | Threads Per Inch | 16 | Thread Size | 3/8 in. |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1.84 | Exterior Dimensions (D) (inches) | 5.250000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 4.000000 |
