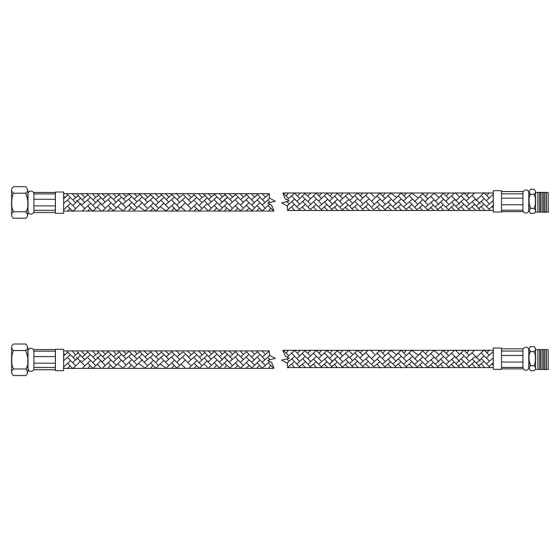

Stainless Steel Braided Hose Kit 1" x 24"

FEATURES

Carrier's Aquazone hose kits combine high quality and reliable operation to facilitate installation and individual balancing for Aquazone water source heat pump (WSHP) units.

Kits are pre-assembled based on the physical water piping connections and design flow rate for individual units. All hose kits include braided stainless-steel, fire-retardant hoses. Thermoplastic tube, bonded to the stainless-steel braided hose, prevents kinking during installation.

Kits are shipped in pairs to streamline matching of kits for individual units. Stainless steel hose construction accommodates all boiler/tower and geothermal applications, providing maximum corrosion protection and structural integrity.

This hose kit provides a flexible connection of the WSHP to the loop water piping.

• Reinforced EPDM (ethylene propylene diene monomer rubber) hose core, stainless steel hose braid, and brass OT58 fittings.
• Swivel connection female ends provides a union between WSHP and the hose kit.
• Two NPSH (hose end) to MNPT (WSHP end) adapters provided and installed on each hose kit.

SPECIFICATIONS

• Connection Diameter (in.): 1”

Kit Connection Type
• WSHP Side: Swivel Male NPT Threads (Includes Factory Installed NPSH to MNPT Male Adapter)
• Water Loop Side: Solid Male NPT Threads

• Hose Length (in.): 24”
• Temperature Range (°F): 5 to 248
• Max Working Pressure (psi): 300
• Min. Bend Radius (in.): 4-3/8”
• Cv (Constant Volume): 21.5
