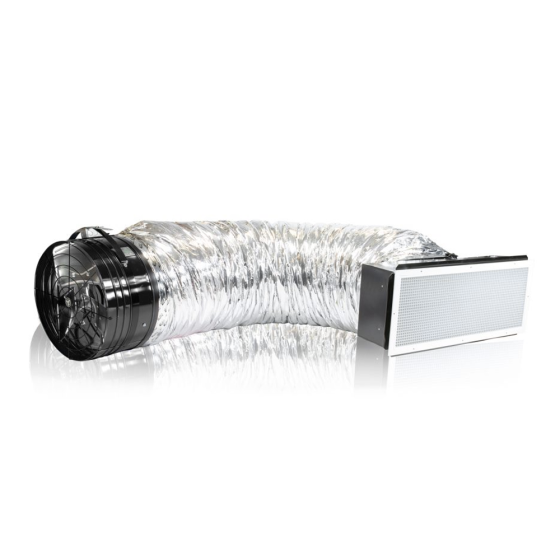

QuietCool® Stealth Pro 6.0X Whole House Fan 3,428 to 5,587CFM, 120Vac (1,862 to 2,794sq ft)

APPLICATIONS

Our Stealth Pro X Series is the efficient Whole House Fan that mastered low cost cooling with powerful results. With our sleek design, patented technology, and reliable production, you can utilize an ultra-energy efficient motor to keep your home cool and your money saved.

FEATURES & BENEFITS

• Airflow: Hi: 5,587 CFM / Med: 4,262 CFM / Low: 3,428 CFM
• HVI-916 Airflow (for CA Title 24 New Construction): Hi: 4,030 CFM / Med: 3,070 CFM / Low: 2,440 CFM
• Recommended SQFT Coverage @ 2-3 CFM per SQFT: Covers 1,862 SQFT to 2,794 SQFT
• Energy Use: Hi: 462 Watts / Med: 210 Watts / Low: 113 Watts
• Amps: Hi: 5.91 / Med: 2.90 / Low: 1.65
• Motor Voltage: 120 VAC, 60 Hz
• # of Speeds: 3
• dBA: Hi: 49.3 / Med: 42.5 / Low: 38.5
• Minimum Attic Clearance: 42”
• Duct Diameter: 22”
• Duct Length: 9 feet
• Motor Head Diameter: 22 1/2”
• Motor Head Length: 13 1/2”
• Dampers: Barometric Pressurized R5 Dampers
• Controls (Sold Separately): Included: 8 Hr Electronic Timer & Double 3-way switch (Optional: IT-36002 QuietCool RF Wireless Control Kit)
• Warranty: 15 Years
• Framing: None Required
• Joist Cutting: None Required; fits 16” or 24” on center
• Minimum Suggested Attic Venting: 7.45 SQ FT net free area
• Ceiling Rough Opening: 14 1/4” x 36 1/4”
• Removable Grille Outside Dimension: 16” x 38"

INCLUDES

• QC STL PRO6.0X Motorhead
• Ceiling Grille
• Cutout Template
• Window Locks
• Damper Box
• 9 Foot Duct
• Accessory Bag
• Controls
