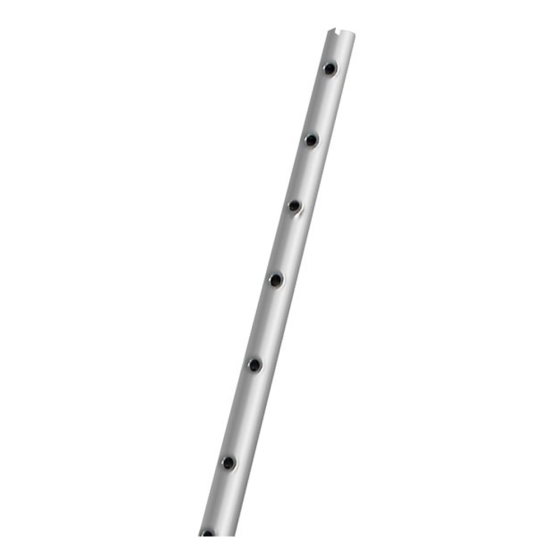

30" Sampling Tube for Ducts

Item

STN-25

FEATURES

STN Series Sampling Tubes are notched for use with SL- and RT- Series detectors, metal.

• 2.5′ notched sampling tubes for use with the SL or RT series duct smoke detectors.

• For duct widths of 12″ to 3′

Key Benefits

• Designed and Manufactured in the USA.

Mechanical

• Weight: 1lbs

• Color: Silver

• Product Length: 762mm

• Product Diameter: 152.4mm

• Sampling Pipe Length (Max): 3ft

• Sampling Pipe Outer Diameter: 18mm

• Sampling Pipe Inner Diameter: 15mm

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	1
Exterior Dimensions (D) (inches)	33.000000
Exterior Dimensions (W) (inches)	2.500000
Exterior Dimensions (H) (inches)	2.500000
Shipping Weight (lbs)	3.000000
