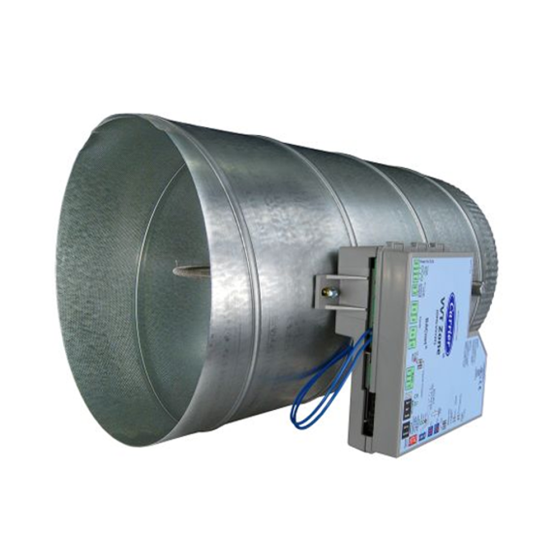

OPNDR16ZC open round zone damp 16" wact

FEATURES

The VVT round zone damper with the VVT Zone controller is a component of Carrier’s i-Vu Building Automation System. It provides accurate and precise airflow for VVT applications. The factory-integrated VVT Zone controller maintains space temperature by modulating the proper amount of supply airflow through its damper.

VVT ZONE DAMPER
• Integral supply air temperature sensor
• Demand control ventilation (DCV) sensor input point
• Counterclockwise and clockwise damper rotation
• Configurable minimum and maximum open damper positions
• Optional 0-10V DC output for linking actuators

VVT ZONE CONTROLLER
• Integral actuator with brushless DC motor, rated at 45 inch-pounds (4Nm) torque, runtime is 205 seconds for 90 degree travel during control
• Provides pressure dependent (VVT), space temperature control for terminals up to 2.7 sq. ft. inlet
• Provides zone level humidity control OR zone level demand control ventilation (ASHRAE 62) with field- installed sensor
• Provides PID control
• Optional terminal fan or auxiliary heat control
• Provides remote occupancy contact input for field-installed occupancy sensor
• Supports sensor averaging
• Capable of stand-alone operation with integral supply air temperature sensor
• Air balancing tool available

SPECIFICATIONS

VVT ZONE DAMPER
Physical
• Spiral Metal Duct Housing: 24 Ga.
• Elliptical Damper Blade: 20 Ga.

Operating Performance
• Torque rating: 45 in. lb.
• Degree of rotation: 30 - 90 degrees
• Pressure rating: 1 in. wg static pressure

VVT Zone Controller
Communications
• BACnet MS/TP at 9600 bps, 19.2 kbps, 38.4 kbps, or 76.8 kbps or ARCNET 156 kbps
• i-Vu can be used to access controller both locally and remotely

• Power Requirements: 24VAC ± 10%, 50-60Hz, 14 VA power consumption, 26VDC (25V min, 30V max), Class 2 only, 100 VA or less

Wiring
• Power: 2 conductor, 18 AWG, unshielded
• Comm: 22/24 AWG, single twisted shld pair, low cap, CL2P wire

Listed by
• United States FCC compliant to Title CFR47, Part 15, Subpart B, Class A; UL Listed, File E143900; CCN
• PAZX, UL 916, Energy Management Equipment
• ANZ: RCM Mark AS/NZS 61000-6-3
• Canada: UL Listed File E143900, CCN PAZX7, CAN/CSA C22.2 No. 205 Signal Equip., Industry Canada Compliant ICES-003, Class A
• CE Mark Compliant with 2014/30/EU, and RoHS Compliant: 2015/863/EU
• UKCA Mark compliant with Electromagnetic Compatibility Regulations 2016 – Gov.UK and RoHS for Electrical and Electronic Equipment 2012

• Environmental Operating Range: 0 to 140ºF (-18 to 54ºC) 10 to 90% RH, non-condensing
• Storage Temperature: -24 to 140ºF (-30 to 60ºC) 10 to 90% RH, non-condensing
