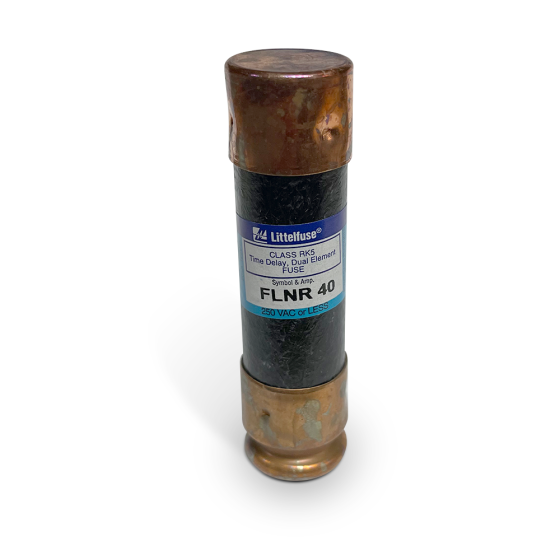

Current Limiting Time-Delay Fuse 40a, 250Vac (Class RK5)
Item
FLNR40
APPLICATIONS
The FLNR Series of fuses set the standard for general purpose fuses. The dual-element design provides advanced short circuit and overload protection. The FLNR Series fuse is ideal for use in service entrance switches, transformers, switchboard mains and feeders, motor control central mains and motor branch circuits, and all general purpose circuits.
FEATURES & BENEFITS
• Dual-element design
• Current limiting
• Voltage Ratings AC: 250V - DC: 125V
• Ampere Rating: 40
• Interrupting Ratings AC: 200 kA rms symmetrical, 300 kA rms symmetrical (Littelfuse self-certified), DC: 20 kA
• Approvals Standard 248-12, Class RK5
• UL Listed (File: E81895)
• CSA Certified (File: LR29862)
• Federal Specification WF-1814
• (QPL- W-F-1814)
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Amp Rating | 40 |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1.39 | Exterior Dimensions (D) (inches) | 1.900000 | Exterior Dimensions (W) (inches) | 0.130000 | Exterior Dimensions (H) (inches) | 0.790000 | Shipping Weight (lbs) | 1.390000 |
