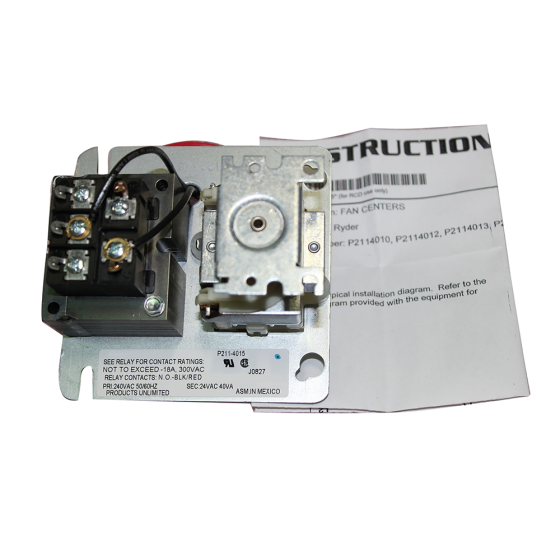

Totaline® Fan Relay, SPDT, 240Vac Primary, 24V Secondary
Item
P211-4015
FEATURES
• 40 VA transformer• 24 volt secondary
• Fits standard 4” Junction box.
• Self-contained unit requires no additional closure.
• Unit imprinted with wiring diagram
• Resistive contact rating: 15a @277v
• Relay coil volts: 24
• Inductive contact rating:3/4 h.p., 12a @ 120v; 3/4 h.p., 6a@ 240v
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1.65 | Exterior Dimensions (D) (inches) | 4.250000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 3.500000 | Shipping Weight (lbs) | 3.000000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
