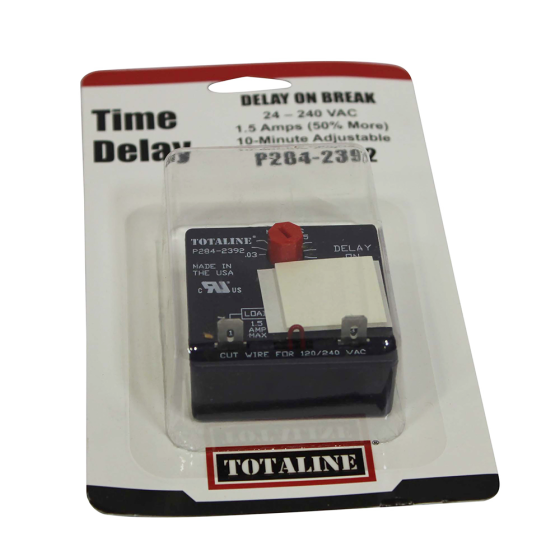

Totaline® Delay-On-Break Timer, Adjustable (0 to 10 Min.)

APPLICATIONS

Helps to protect air conditioning, refrigeration and heat pump equipment from damage which may be caused by the rapid short-cycling of compressor.

FEATURES & BENEFITS

• Universal voltage operation.
• Higher 1.5 amp power rating.
• Compressor lockout/anti-short cycle timer.
• Helps to protect compressors from damage caused by rapid short cycling.
• Simple, 2-wire hookup.
• Compact 2” x 2” package.
• Input: 18-240 VAC, 1.5 amps, 15 amp inrush
• Voltage drop 3.5 V typical 4.5 V max
• Knob adjustable delays .03-10 min

REPLACES

• Diversified: ASC-500, ASC 501 ASC502, ASC 505-5
• Gemline: IC320
• WATSCO: EAC501-ADJ, EAC501-ADJ-X
• MARS: 32392
• Robertshaw: 3310-072
• Supco: TD-73
