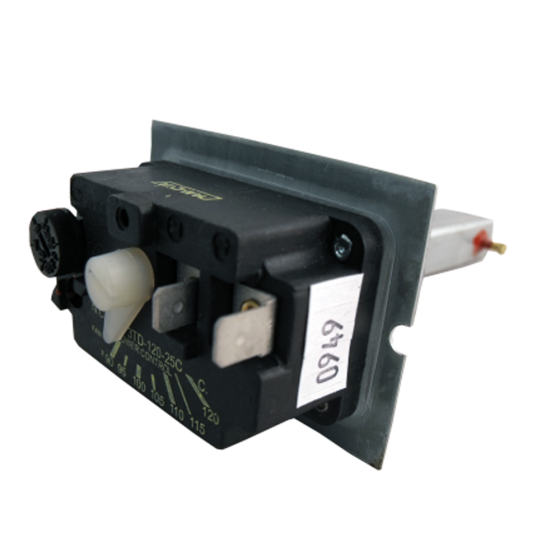

Camstat Fan Control 120/240Vac, 3"
Item
F473TD12025C
APPLICATIONS
For replacing the exact OEM heating control components, Supco® offers the complete line of CAMSTAT® controls.
FEATURES & BENEFITS
• Incorporates temperature adjustment to match existing setting SPST switch
• UL® Recognized
• CSA® Approved
• Fan term (2 and 4 N.O.) LRA @ 240V: 48 LRA
• Fan term (2 and 4 N.O.) LRA @ 120V: 82.8 LRA
• Fan term (2 and 4 N.O.) FLA @ 240V: 8.0 FLA
• Fan term (2 and 4 N.O.) FLA @ 120V: 13.8 FLA
• Fan differential: 25 °F to 50 °F
• Fan off temp.: 90 °F to 120 °F
• Length: 3"
• Width: 7/16"
CROSS REFERENCE
• A-1® - FF564
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 2 | Exterior Dimensions (D) (inches) | 5.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 2.000000 |
