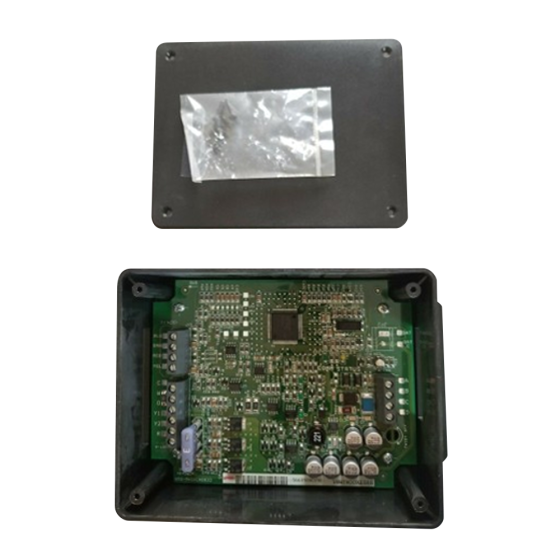

Bryant Evolution Network Interface Module
Item
SYSTXBBNIM01
FEATURES
The SYSTXBBNIM01 Network Interface Module (NIM) is used to interface the following devices to the Evolution ABCD bus so they can be controlled by the Evolution System. The following devices do not have communication ability and the NIM is required to control:
• A Heat Recovery Ventilator / Energy Recovery Ventilator (HRV/ERV) (when zoning is not applied).• A non-communicating single-speed heat pump with a variable- speed furnace (dual fuel application only).
• A non-communicating two-speed outdoor unit (R-22 Series-A unit).
| Electrical | |
|---|---|
| Amps | 40 | Voltage | 24 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 4.200000 | Exterior Dimensions (W) (inches) | 1.500000 | Exterior Dimensions (H) (inches) | 6.400000 | Shipping Weight (lbs) | 3.000000 |
