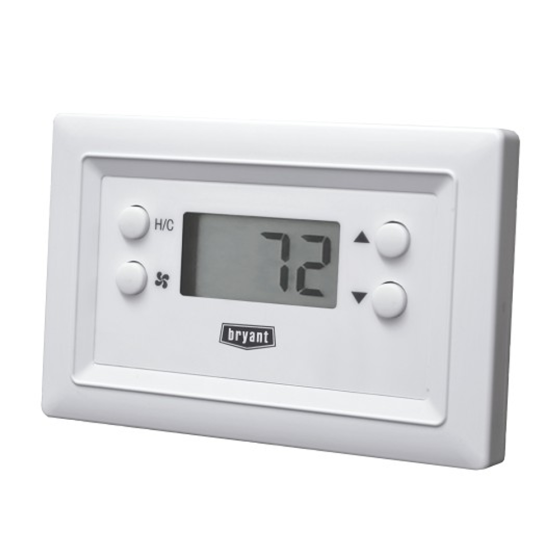

Bryant® Legacy™ Non-Programmable Thermostat 2H/1C, 24Vac (Heat Pump)
Item
T1NHP01
FEATURES & BENEFITS
• Non-volatile memory to retain settings during a power outage
• English/Metric units selection
• Modes include Off, Cool, Heat and Eheat
• Auxiliary heat indicator
• 2-stage heat / 1-stage cool
• Terminals: O/B, W, Y, G, R, C
| Specification | |
|---|---|
| Stages (Heat Pump) | 2 Heat, 1 Cool | Power Method | Hardwire (24Vac) | WiFi Capability | No | Temporary Hold | No | Permanent Hold | No | Millivolt Compatible | No | Touchscreen | No | Battery Backup | No | Filter Indicator | No | Humidification Controls | No | Key Pad Lockout | No | Remote Sensing Capability | No | Backlight | No |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.01 | Exterior Dimensions (D) (inches) | 2.700000 | Exterior Dimensions (W) (inches) | 4.200000 | Exterior Dimensions (H) (inches) | 0.900000 | Shipping Weight (lbs) | 0.250000 |
