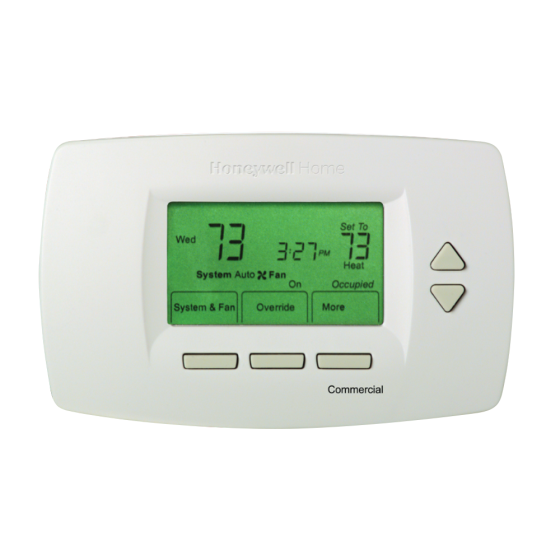

Honeywell CommercialPRO® 7000 7 Day Programmable Commercial Thermostat 2H/2C (3H/2C HP), 24Vac/3Vdc (2 AA)
Item
TB7220U1012
FEATURES
The CommercialPRO® 7000 Programmable Thermostat is an effortless, seven-day programmable thermostat that provides universal system compatibility, precise comfort control and is easy-to-program. The TB7220 provides temperature control for gas, oil, electric and heat pumps for up to 2 heat, 2 cool systems.
• Large, clear display with backlight shows the current and set temperature and time--even in the dark.• Menu-driven programming make setup effortless.
• Beautiful ergonomic design is smart and sophisticated to match your customers’ lifestyle.
• Real-time clock keeps time during power failures and automatically updates to daylight savings.
• Saving Changes notification lets you know when the schedule changes have been saved.
• Change reminders let you know when to replace the batteries.
• Holiday Override options allow you to override the program schedule, as desired.
• Speedy same-schedule programming--no need to copy multiple days.
• Armchair programming allows you to remove the thermostat from the wall for programming.
SPECIFICATIONS
• Stages: Up to 3 Heat/2 Cool Heat Pump; Up to 2 Heat/2 Cool Conventional• Switch Positions (System): HEAT-OFF-COOL-AUTO-EM.HEAT
• Switch Positions (Fan): AUTO-ON
• Network Communications: None
• Power Method: 24 Vac or Battery
• Color: Premier White®
• Terminal Designations: R, Rc, W (O/B), W2 (W1), Y, Y2, A, G, C, S1, S2
• Setting Temperature Range (F): Heat: 40 F to 90 F; Cool: 50 F to 99 F
• Setting Temperature Range (C): Heat: 4.5 C to 32 C; Cool: 10 C to 37 C
Safety Standards | |
---|---|
California Prop 65 | Yes | Hazardous Material | No |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 1.02 | Exterior Dimensions (D) (inches) | 2.000000 | Exterior Dimensions (W) (inches) | 7.250000 | Exterior Dimensions (H) (inches) | 5.500000 | Shipping Weight (lbs) | 4.000000 |
Warranty | |
---|---|
Country of Origin | Mexico |
