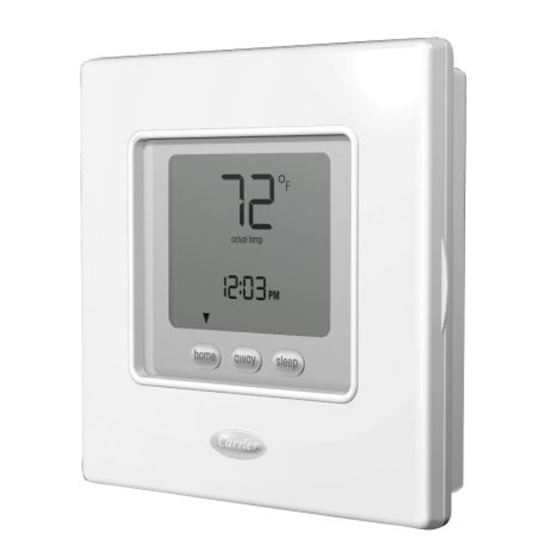

Carrier® Comfort™ Series 5+2 Programmable Thermostat 1H/1C, 24Vac/3Vdc (2 AA - Conventional)
Item
TCPAC01A
FEATURES & BENEFITS
• Continuous display back-lighting configurable
• Auto changeover available
• Non-volatile memory to retain settings during a power outage
• Optional battery operation
• English/Metric units selection
• Keypad lockout
• RC / RH power compatible
• Configurable setpoint limits
• Touch-n-Go™ programmability
• 5-2 or All Days programmable
• 4 or 2 periods per day selectable
• 1-stage heat / 1-stage cool
• Terminalsl: W, C, G, Y, Rc, Rh
| Specification | |
|---|---|
| Stages (Conventional) | 1 Heat, 1 Cool | Power Method | Hardwire (24Vac)/Battery (3Vdc) | Program Options (Days) | 5+2 | WiFi Capability | No | Temporary Hold | Yes | Permanent Hold | Yes | Touchscreen | No | Battery Backup | Yes | Filter Indicator | No | Humidification Controls | No | Key Pad Lockout | Yes | Remote Sensing Capability | No | Backlight | Yes |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 1.200000 | Exterior Dimensions (W) (inches) | 5.200000 | Exterior Dimensions (H) (inches) | 5.200000 | Shipping Weight (lbs) | 3.000000 |
