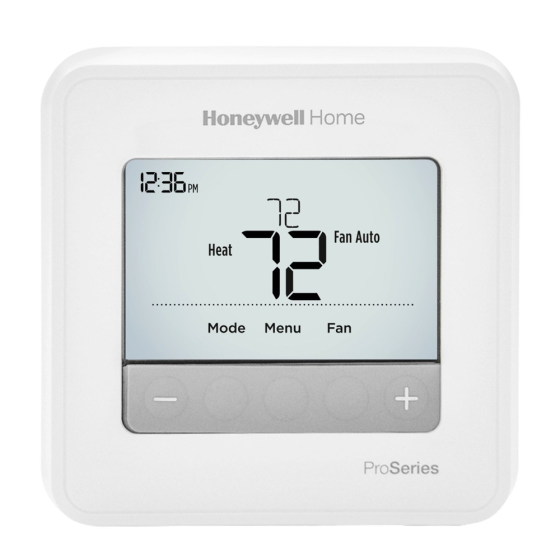

Honeywell T4 Pro 7/5+2/5+1+1 Day Programmable Thermostat 1H/1C, 24Vac/3Vdc (2 AA)

Item
TH4110U2005
  • California Prop 65

APPLICATIONS

Part of the Honeywell Home T Series of thermostats from Resideo, the T4 Pro Programmable Thermostat helps you manage your home heating and cooling in a simple, easy to use device. Designed to streamline everything from installation to user experience, the T4 features push button control and seven-day scheduling, including an option to set a different schedule on weekends. With its adaptive intelligent recovery, the T4 helps you feel comfortable sooner by learning how long it takes your system to reach a desired temperature and activating the system earlier.


FEATURES

Simplified Control
The T4 Pro Programmable Thermostat is easy to install with on-screen menus to display installation steps and a universal mounting system. It's even easier to use with simple push button controls, allowing you to adjust the temperature or set a heating and cooling schedule.

Adaptive Intelligent Recovery
Over time, the T4 Pro Programmable Thermostat learns how long it takes your system to reach the temperature you want. It turns on the heating or cooling system earlier to make sure you're comfortable at the time you expect.

Revolves Around You
It takes work to manage your daily schedule, but with the T4 Pro Programmable Thermostat, your home temperature is one thing you can set and forget. Program a seven-day schedule or set different schedules on the weekend so you can always be comfortable whether you're awake or asleep, home or away.

Wi-Fi: No
RedLINK: No
Color: White
Terminals: Y, G, C, O/B, W, K, R, Rc
Includes: Thermostat, UWP Mounting System, Honeywell Home Standard Installation Adapter (J-box adapter), Decorative Cover Plate, Screws and anchors, 2 AA Batteries, Installation Instructions and User Guide
Utility Rewards: No
Stages: 1 Heat/1 Cool Heat Pump Systems, 1 Heat/1 Cool Conventional Systems
Program Modes: Manual / Not Programmed, 5-2 Programmable, 7-Day Programmable, 5-1-1 Programmable
Control Functions: Heating, Cooling
Alerts and Reminders: Battery Replacement
Display Language: English
Displayed Information: Time, Mode, Indoor Temperature, Status Display, Backlit
Product Height: 4.06 in, 104 mm
Product Width: 4.06 in, 104 mm
Product Depth: 1.13 in, 29 mm
Specification
Backlight Yes
Display Size 3.9 sq. in.
Millivolt Compatible Yes
Permanent Hold Yes
Program Options (Days) 7, 5+2, 5+1+1
Stages (Conventional) 1 Heat, 1 Cool
Stages (Heat Pump) 1 Heat, 1 Cool
Touchscreen No
WiFi Capability No
Temporary Hold Yes
Remote Sensing Capability No
Power Method Hardwire (24Vac)/Battery (3Vdc)
Key Pad Lockout Yes
Humidification Controls No
Filter Indicator Yes
Battery Backup Yes
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 0.42
Exterior Dimensions (D) (inches) 4.070000
Exterior Dimensions (W) (inches) 4.070000
Exterior Dimensions (H) (inches) 1.090000
Shipping Weight (lbs) 0.100000
