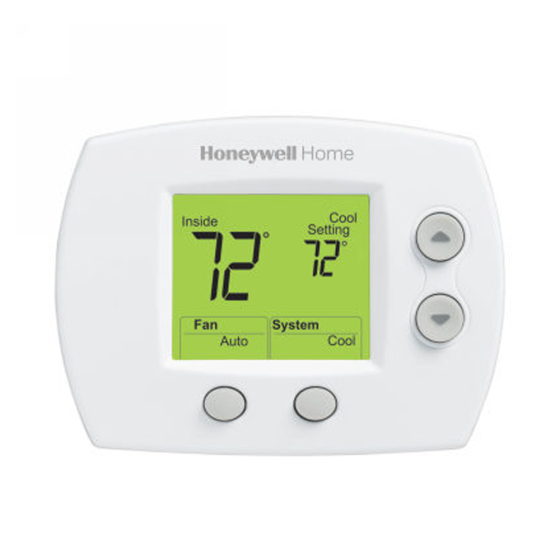

Honeywell FocusPRO 5000 Non-Programmable Thermostat 1H/1C, 24Vac/3Vdc (2 AAA)

APPLICATIONS

The Honeywell Home FocusPRO® 5000 digital thermostat offers the perfect blend of features, performance, energy savings and value. With an easy-to-read digital display, the FocusPRO 5000 prominently displays both room and set temperature.

FEATURES

Easy-access battery replacement
Displays available in large or standard screen
Precise comfort control (±1 F) which maintains consistent comfort
Dual-powered (battery and/or hardwire)
5-Year warranty
Dimensions (in.): 3 7/16 in. high x 4 1/2 in. wide x 1 5/16 in. deep
Dimensions (mm): 86 mm high x 114 mm wide x 33 mm deep
20 to 30 Vac or 750 mV
Up to 1 Heat/1 Cool
Operating Humidity Range (% RH): 5 to 90% RH, non-condensing
Switch Positions (System): HEAT-OFF-COOL-AUTO
Switch Positions (Fan): AUTO-ON
Power Method: Dual Powered: Battery or Hardwire
Color: Premier White®
Display: Large backlit display
Sensor Element: Thermistor
Accuracy (F): ±1 F
Accuracy (C): ± 0.5 C
Switch Type: Relay
Terminals: R, Rc, C, W (O/B), Y, G
Display Size: 2.98 sq. in.
Changeover: Auto or Manual Selectable
Setting Temperature Range (F): Heat: 40°F to 90°F; Cool: 50°F to 99°F
Setting Temperature Range (C): Heat: 4.5°C to 32°C; Cool: 10°C to 37°C
Cycles per Hour: Heating 1-12 CPH; Cooling 1-6 CPH
Cool Current: 1.0 A running
Heat Current: 1.0 A running
Fan Current: 0.5A running
