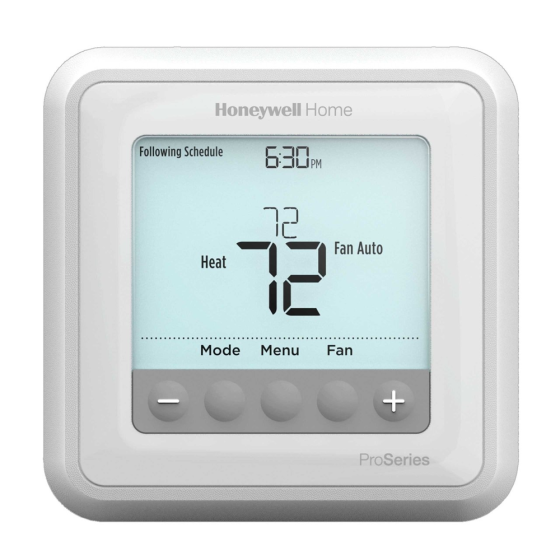

Honeywell T6 Pro 7/5+2/5+1+1 Day Programmable Thermostat 1H/1C (2H/1C HP), 24Vac/3Vdc (2 AA)

APPLICATIONS

Prioritize comfort in your home with the T6 Pro Programmable Thermostat. The easy-to-use thermostat automatically heats or cools your home to maintain the temperature you like the most. With 7-day flexible scheduling, you can program your thermostat for the week ahead and adjust it easily if your plans change.

The large backlit display shows the temperature and comes with a real-time clock that automatically adjusts for Daylight Savings Time. Use the temporary or permanent hold settings to override your schedule, and receive reminders when it's time to change the filters or the batteries.

FEATURES

7-Day Flexible Scheduling
With 7-day flexible scheduling, you can create a separate schedule for each day of the week. Set a preferred temperature for when you sleep, wake up, leave, or come home. Find a program that suits your lifestyle, and adjust the schedule easily if plans change.

Smart Response Learning
The T6 Pro 7-Day Programmable Thermostat learns your heating and cooling cycle times to deliver the right temperature when you want it. With precise temperature control, the thermostat can automatically change from heating to cooling to help maintain the temperature you like most.

Intuitive Design
The programmable thermostat comes with simple instructions and a large, 5.44 square-inch backlit display, so you can easily determine the temperature and change the settings. The real-time clock automatically adjusts for Daylight Savings Time, and handy reminders let you know when it's time to change the filters or the batteries.

7-day, 5-2, 5-1-1 or non-programmable
Uses the UWP mounting system that’s standard across all T Series thermostats
Easy upsell to a connected Lyric T6 Pro Wi-Fi when your customer is ready for Wi-Fi (C-wire required)
Simple push-button functionality
Filter change reminders
5-year warranty
Dimensions (in.): 4-1/16 in. long x 4-1/16 in. wide x 1-3/32 in. deep
Dimensions (mm): 103.6 mm long x 103.6 mm wide x 28 mm deep
Includes: Thermostat, UWP mounting system, Installation (J-box) adaptor, Small decorative cover plate, screws and anchors, Installation Guide, User Guide, and 2 AA Batteries
Electrical Ratings: 20 to 30 Vac
Stages: Up to 2 Heat/1 Cool Heat Pumps; Up to 1 Heat/1 Cool Conventional Systems
Electrical Connections: R, Rc, C, W, G, Y, O/B, Aux, E, L
Operating Humidity Range (% RH) 5 to 90% RH, non-condensing
Supply Voltage: 20 to 30 Vac
Switch Positions (System): HEAT-OFF-COOL-AUTO-EM.
Switch Positions (Fan): AUTO-ON-CIRC-FOLLOW SCHEDULE
Operating Temperature Range (F): 37 F to 102 F
Operating Temperature Range (C): 2.7 C to 39 C
Shipping and Storage Temperature Range (F): - 20 F to 120 F
Shipping and Storage Temperature Range (C): - 28.9 C to 48.9 C
LEDs: LED Back Light
Power Method: Battery or Hardwired
Ambient Temperature Range (C): 0 C to 50 C
Ambient Temperature Range (F): 32 F to 120 F
Display: Large Display, Soft Key Controls
Accuracy (F): 1 F
Accuracy (C): 0.5 C
Differential Temperature (F): ± 1 F
Differential Temperature (C): ± 0.5 C
Interstage Differential Temperature (F): 1 to 1.5 F Multistage models only
Programmability: 7 day, 5-1-1 day, 5-2 day, or Non-programmable
Display Size: 5.44 sq. in.
Temperature Control Mode Selections: Ambient Air Temperature
Changeover: Auto or Manual
Setting Temperature Range (F): Heat: 40 F to 90 F; Cool 50 F to 99F
Setting Temperature Range (C): Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C
Heat Current: 0.02-1.0 A
Fan Current: 0.02-.5 A
Terminals: R, RC, C, W, W2-AUX, Y, G, L, O/B, E/K
