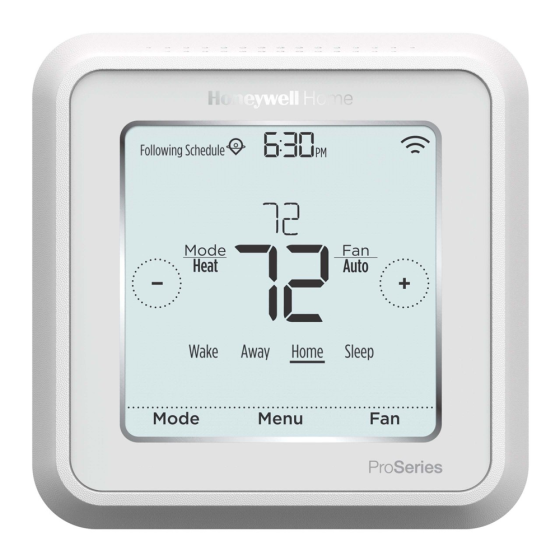

Honeywell T6 Pro Smart Thermostat with Wi-Fi, 2H/2C (3H/2C HP), 24Vac

APPLICATIONS

The T6 Pro Smart Thermostat can give you home comfort control from anywhere. Connect to the app to view and change temperature settings, program a 7-day schedule or just let the T6 respond automatically, it's designed to work with the heating stages of your existing system.

FEATURES

Connected, simple and smart, the T6 Smart Thermostat is ENERGY STAR® certified and adapts to your lifestyle. It can learn your preferred comfort levels over time and heats or cools on schedule. If plans change, it's easy to adjust your home's temperature from any of your connected devices.

This Wi-Fi thermostat allows you to enable geofencing to help save energy while you're away. Your Resideo Pro will install the T6 and help you enable your preferred settings and create your home comfort schedule.

Connect and control your in-home devices from anywhere, anytime, on any mobile device with the Resideo app. With the app, you can control lights, locks, cameras, thermostats and more, receive alerts when a smart home device is triggered, and review a complete history of system events.

Responds to You
Your life doesn't always follow a schedule, but the T6 Pro Smart Thermostat can. Program your weekly schedule - or enable the geofencing feature to respond to your lifestyle. When you come and go, your temperature settings will automatically adjust based on your location. No need to predict your schedule up front.

Works with Your Favorites
Connected to your existing Wi-Fi, the T6 Pro Smart Thermostat is already part of the family. Integration with your Apple HomeKit and Amazon Echo lets you adjust your temperatures as easily as you change songs on your playlist. This thermostat also works with your heating systems stages, up to 3 Heat/2 Cool with heat pump.

Energy Savings
The ENERGY STAR® certified T6 Pro Smart Thermostat can use its responsive settings to help budget your energy use at home by adapting to your schedule rather than operating at peak times. Designed with the ability to let you adjust temperatures via the app, your smart thermostat can help save energy when it matters most.

SPECIFICATIONS

Wi-Fi: Yes
Wi-Fi Specifications: 802.11b, 802.11g, 802.11n, 2.4GHz range
RedLINK: No
Color: White

Terminals: S/S, Y, Y2, G, C, K*, U/U**,L/A, O/B, W, W2, Aux, R, Rc
* The THP9045A1098 C-wire adaptor is used on heat/cool systems when you only have four wires at the thermostat and you need a fifth wire for a common wire. Use the K terminal in place of the Y and G terminals on conventional or heat pump systems to provide control of the fan and the compressor through a single wire—the unused wire then becomes your common wire. See THP9045 instructions for more information.
** Ventilation is not available on all models. When the U slider is in the down position (2 wires), the U contacts are a dry set of contacts. If your ventilation system requires 24 volts, move the U slider to the up position (1 wire). Lower U terminal is internally jumped to the Rc terminal. In this application, you would hook up one wire from your damper to the upper U terminal and the other to the common side of the transformer.

Includes: T6 Pro Wi-Fi Thermostat, UWP Mounting System, Decorative Cover Plate, Screws and anchors, Professional Install Guide, Getting Started Guide
Utility Rewards: Yes
Stages: Up to 3 Heat/2 Cool Heat Pump Systems, Up to 2 Heat/2 Cool Conventional Systems
Program Modes: 7-Day Programmable, 5-1-1 Programmable, 5-2 Programmable, Geofencing, Manual / Not Programmed, Manual / Not Programmed, 5-2 Programmable, 5-1-1 Programmable, 7-Day Programmable, Geofencing
Control Functions: Heating, Cooling
Fan Function: Cycled, Continuous
Alerts and Reminders: Heat Pump Failure, Heat Pump Error, Filter Change 1, Filter Change 2, Humidifier Pad (through app), Humidifier Clean Tank, UV Bulb 1, UV Bulb 2, Vent Core, Vent Filter, Wi-Fi No Internet, Wi-Fi Radio Error, AC Power Resumed, Battery Replacement, High Indoor Temperature, Low Indoor Temperature
Display Type: Touch Screen
Displayed Information: Time, Mode, Indoor Temperature, Up Button, Down Button, Fan, Connected symbol, Backlit, Wi-Fi Status
Energy Star Certified: Yes
Product Height: 4.06 in, 104 mm
Product Width: 4.06 in, 104 mm
Product Depth: 1.09 in, 28 mm
Warranty: 5 Years
