Toshiba Carrier 36,000 BTU Cassette Fan Coil Unit, 208/1

Item
RAVSP360UTUL
  • California Prop 65

Whether you're supplementing cooling and heating in an entry or an interior room, you'll appreciate the power and efficiency of this in-ceiling Cassette unit.

If your need is for comfort, features like three indoor fan speeds and fixed or oscillating louver control will make an impression.

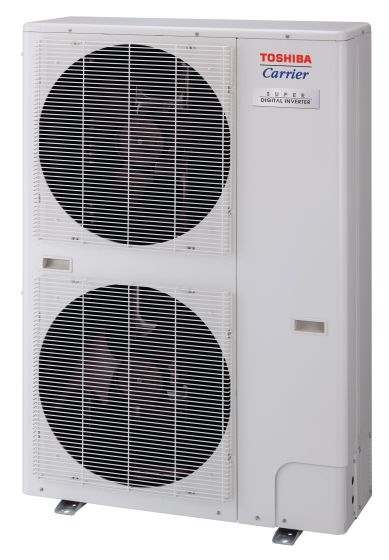

The RAVUT Cassette indoor unit is matched with the RAVAT heat pump to create the RAV Ductless Light Commercial system.

STANDARD FEATURES

  • Available in 208/230V
  • Modes: Cool, Heat, Dry, Fan, Auto
  • Three indoor unit fan speeds
  • Built-in condensate pump
  • Branch duct capability
  • Outside air intake
  • Sleep Mode
  • Power Saving Mode
  • Independent louver control (fixed or swing)
  • Quiet indoor sound operation, as low as 32 decibels1
  • Washable filter with on-unit filter maintenance indicator
  • System diagnostics
  • 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2

CONTROL STANDARD FEATURES

  • Optional Wireless Remote Controller
  • Optional Wired Remote Controller (Convertible)

OPTIONAL FEATURES

  • Outside air intake
  • Air discharge direction kit


1 Quietest size within each model group during low fan-speed operation

2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.

Specification
EER 13
HSPF 11.9
Net Cooling Capacity 36400
Net Heating Capacity 36000
SEER 21
Electrical
Hertz 60
Phase 1
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 53
Exterior Dimensions (D) (inches) 12.600000
Exterior Dimensions (W) (inches) 33.100000
Exterior Dimensions (H) (inches) 12.600000
Shipping Weight (lbs) 64.000000
