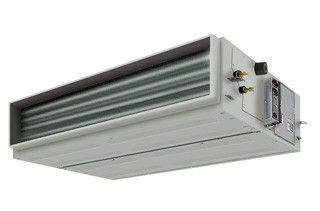

Toshiba Carrier Concealed Duct Indoor Unit
Item
MMDB
Toshiba Carrier VRF
Concealed Duct Indoor Unit
7,500 to 48,000 Btuh
0.6 to 4.0 Tons
The Toshiba Carrier Concealed Duct indoor unit is ideal for single room hideaway applications.
Compatible Outdoor Units
The MMDB fan coil is matched with the MMYF heat recovery unit or the MMYH heat pump.
Product Features
- Available in 11 different capacities
- 208-230V/1/60Hz voltage
- External static range 0.2" to 0.48"
- DC fan motor
- Three fan speeds - High, Medium, Low
- 1" filter rack for field installed filter
- Built-in condensate drain pump
- Rear return is standard and bottom return is field convertible
- Optional fan guard
Reliability Features
- Finned tube heat exchanger
- Suitable for R-410a refrigerant
- All equipment wiring complies with NEC requirements
- Unit constructed in accordance with ETL and ETL, Canada standards
Installation Features
- Factory provided controls
- Single point electric connections
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 1.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 1.000000 |
