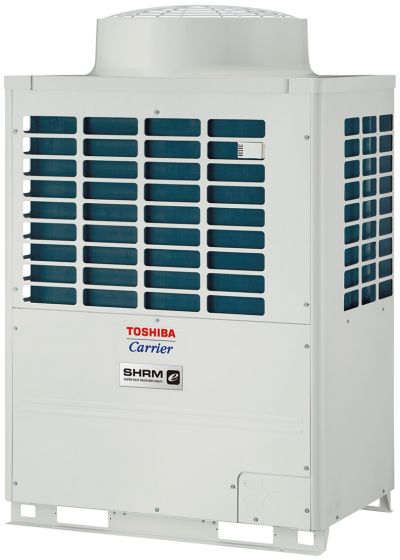

Toshiba Carrier Heat Recovery Outdoor Unit

Toshiba Carrier VRF

Single or Multiple Module Heat Recovery System

72,000 to 456,000 Btuh
6.0 to 38.0 Tons

The Toshiba Carrier VRF system is a combination of an outdoor unit with multiple style indoor units connected by refrigerant piping and wiring. The outdoor units can be used as a single, dual, or triple modules.

Compatible Indoor Units

The MMYF heat recovery unit is matched with multiple VRF fan coils.

Product Features

• Available in 6, 8, 10, 12 and 14-ton single module which can be combined up to 38-tons capacity
• Ability to connect up to 64 indoor units to triple module outdoor unit
• 3-pipe heat recovery system
• High performance outdoor units with all Inverter driven twin rotary compressor
• DC Inverter condenser fan motor
• 208/230-3-60Hz or 460-3-60Hz voltage
• Cooling ambient operating temperature is 14° F to 122° F and heating ambient operating temperature is -13° F to 60° F
• Connected capacity is up to 150%
• 13% smaller footprint with space saving models available in selected sizes

Reliability Features

• All equipment wiring complies with NEC requirements
• Unit constructed in accordance with ETL requirements
• Unit performance is in accordance with AHRI 1230 standards
• Compressor and condenser fan motor are Inverter driven
• Finned tube heat exchanger
• Suitable for R-410a refrigerant

Installation Features

• Indoor units can be connected using Y-branch joints, branch headers, flow selector box or multiport flow selector box
• Factory provided controls
• Individual power connection for each module
• Outdoor units are connected using twinning kits provided from factory
