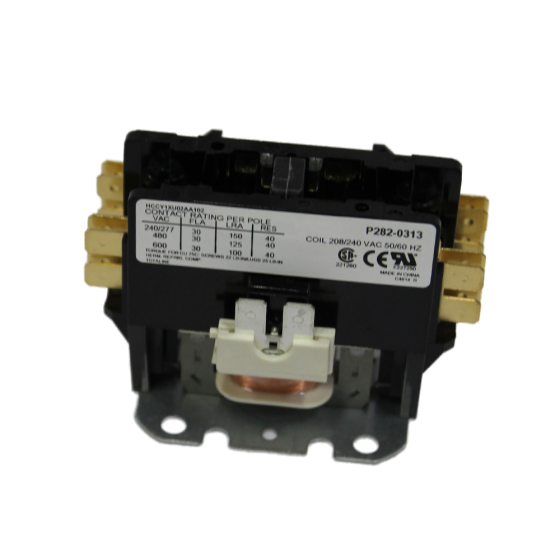

Totaline® Contactor 1 Pole with Shunt, 208/240Vac Coil, 30FLA, 40RA, Screw Terminals
Item
P282-0313
FEATURES & BENEFITS
• 1 Pole with Shunt.• FLA: 30.
• Resistive Amps: 40.
• Coil Voltage: 208/240Vac.
• 150LRA @ 240/277Vac, 125LRA @ 480Vac, 100LRA @ 600Vac.
• Terminal Type: Screw.
• Insulation: Class B.
• 4 Quick Connections Per Pole.
• Temperature °F: -40 to 150.
• Temperature °C: -40 to 65.
• Silver Cadmium Oxide Contacts.
• UL 508 File NO. E227250.
| Electrical | |
|---|---|
| FLA | 30 | Hertz | 60 | Voltage | 240/277/480/600 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Coil Voltage | 208/240Vac | Poles | 1 |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 4.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 1.000000 |
