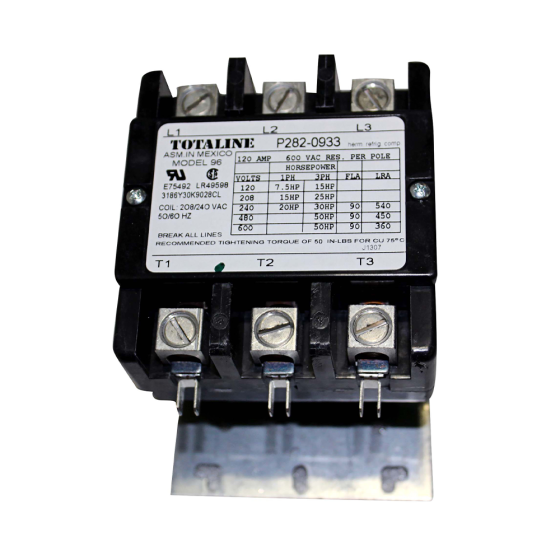

Totaline® Contactor 3 Pole, 208/240Vac Coil, 90FLA, 120RA, Screw Terminals

Item
P282-0933
  • California Prop 65

FEATURES & BENEFITS

• 3 Pole.
• FLA: 90.
• Resistive Amps: 120.
• Coil Voltage: 208/240Vac.
• 540LRA @ 240Vac, 450LRA @ 480Vac, 360LRA @ 600Vac.
• Terminal Type: Screw.
• 2 Quick Connections Per Pole.

Electrical
FLA 90
Hertz 60
Voltage 120/240/480/600
Safety Standards
California Prop 65 Yes
Specification
Coil Voltage 208/240Vac
Poles 3
Weights and Dimensions
Operating Weight (lbs) 1
Exterior Dimensions (D) (inches) 8.000000
Exterior Dimensions (W) (inches) 6.000000
Exterior Dimensions (H) (inches) 6.000000
Shipping Weight (lbs) 1.000000
