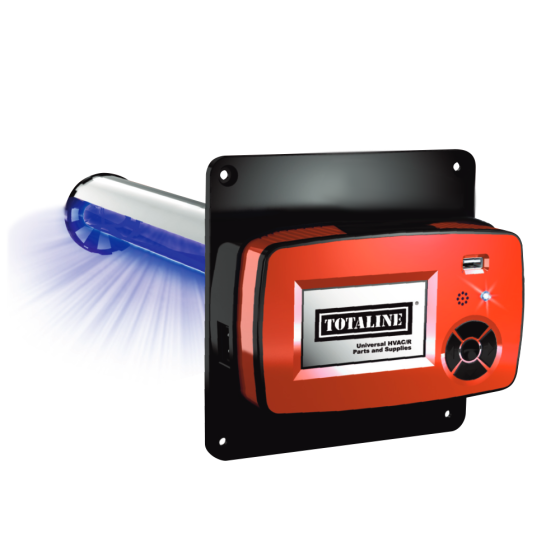

Totaline® Dual UV Germicidal Purification Lamp with Parabolic Reflector & LCD 16", 120Vac, 36W (Hi-Temp)

Item
UV2-GF-DL-16
  • California Prop 65

FEATURES

The Totaline Dual Lamp UV unit is a potent UVGI, Germicidal Ultraviolet air treatment system. It features non ozonating, Dual 36 watt-254 nanometer UVC lamps, in combination with proprietary anodized parabolic reflectors. This tandem system helps enhance UVC output creating higher potency in a convenient & versatile design. The Totaline Germicidal unit helps disinfect & deactivate airborne molds, bacteria, virus and microorganisms in addition to coil treatment.

The Totaline Dual Lamp UV system features 9000 hours UVC Germicidal lamps. Periodic maintenance & replacement is recommended.

120 Volt operation
Ideal for duct systems

Dual 254 Nm, 36 watt lamps
Twice the power versus single lamp 18 watt

Enhanced with parabolic reflection
360 Degree directional UVC power

Optional LCD Service screen
Programmable & communicates

High temp “attic” model
For high ambient installations

UVC “Smart light” indicator
Monitors unit operation visually

Versatile mounting base
Convenient installation & servicing

Ozone free
Optimized for safety

SPECIFICATIONS

• Electrical Power: 120V
• Lamp Length: 16” (15.25”)
• Lamp Life (Hours): 9,000
• Lamp Wattage: 18
• Lamp Type: 254 Nm
• UV Output (uw/cm @ 2.5’): 204
• Amp Draw: 0.35
• Replacement UV Lamp: UV2-GF-16S-LP
Electrical
Voltage 120
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 5
Exterior Dimensions (D) (inches) 21.000000
Exterior Dimensions (W) (inches) 6.000000
Exterior Dimensions (H) (inches) 7.000000
Shipping Weight (lbs) 5.000000
Specification
Produces Ions No
Reduces VOCs No
