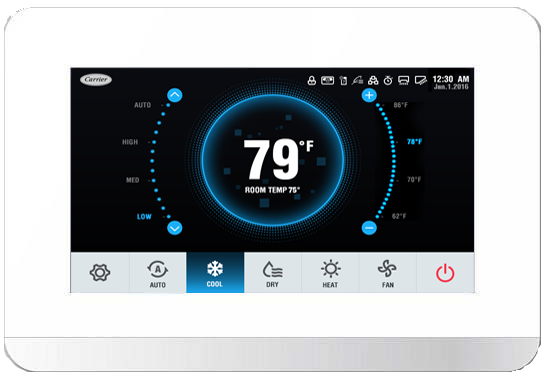

Touch Screen Wired Controller
Item
40VM900005
VRF
The Touch Screen Wired Controller is a low voltage controller mounted on the wall that maintains room temperature by controlling the Carrier VRF system operation. The controller is capable of displaying temperature from 54° F to 86° F for standard indoor unit and 50° F to 86° F for outside air unit.
Compatible Units
Product Features
- Group control (max 16 indoor units)
- Dual setpoint control
- Weekly scheduling
- Touch screen
- Mode Setting: Fan Speed, Swing
- Room temperature display
- Controls up to 384 indoor units
- Addressing capability
- Error code display
- 1° F temperature indication
Installation Features
- Interface is powered from field-supplied 24VAC power.
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3 | Exterior Dimensions (D) (inches) | 1.130000 | Exterior Dimensions (W) (inches) | 7.250000 | Exterior Dimensions (H) (inches) | 4.880000 | Shipping Weight (lbs) | 3.000000 |
