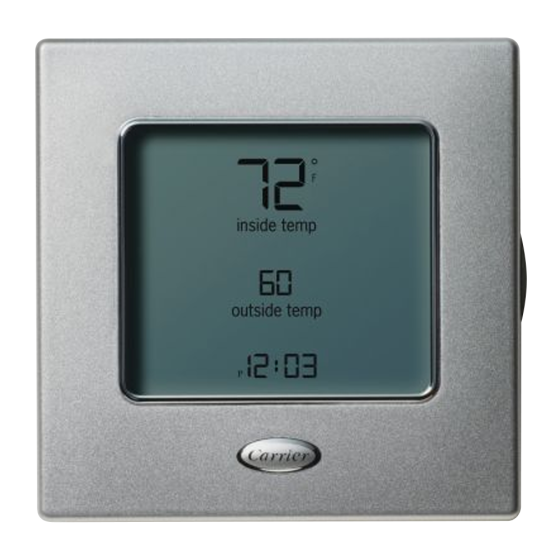

Carrier® Performance™ Series Edge™ 7/5+2/1 Day Programmable Thermostat 3H/2C, 24Vac (Heat Pump)

APPLICATIONS

This versatile and beautiful Edge thermostat can manage any Performance™ or Comfort™ series system. Its slim, wall-hugging design gives you up to seven faceplate color options so you can customize your look.

It's capable of managing temperatures, ventilation, airflow and indoor air quality. This model is configured for systems using an air conditioner for cooling.

FEATURES & BENEFITS

• Outdoor Air Temperature (OAT) sensor option
• Auto changeover available
• Battery free
• Non-volatile memory to retain settings during a power outage
• Keypad lockout
• English/Metric units selection
• Filter/UV light/Humidifier pad replacement indicators
• Continuous display back-lighting configurable
• Hybrid Heat compatible
• RC/RH power compatible
• 2-wire communicating installation option
• ExP™ expansion port* for use with future enhancements and/ or features
• Programmable with personal computer (Requires ExP accessory)
• 7, 5-2, All Days programmable
• 4 or 2 periods per day programmability
• Programmable fan by period
• Vacation mode controls temperature and humidity
• Remote room sensor option
• Adjusts automatically for Daylight Savings Time
• 3-stage heat / 2-stage cool
• Terminals: OAT, RRS, SRTN, HUM, D1, D2, V+, Vg, Rc, Rh, W/W1, G, Y/Y2, C, O/W2/B, Y1
