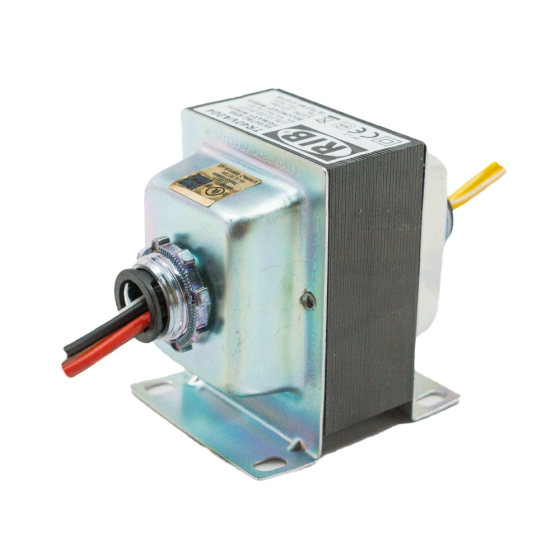

Transformer 120/208/240/277Vac Primary, 24Vac Secondary, 40Va
Item
TR40VA004
FEATURES
The TR40VA004 Transformer is a versatile solution for converting different input voltages to a stable 24 VAC output. As one of our premier transformers, this component boasts unmatched durability and reliability in a wide mix of settings, including residential, commercial, and industrial applications.
40 VA CapacityEfficient for small-scale applications.
Multiple Input Voltages
Converts 277/240/208/120 VAC input voltages to 24 VAC.
Foot and Dual Threaded Hub Mount
Install the TR40VA004 on your terms.
Compact Size
Ideal for limited-space environments.
Reliable Conversion
Ensures consistent power delivery.
SPECIFICATIONS
• VA Rating: 40• Frequency: 50/60 Hz
• Mounting: Foot & Dual Threaded Hubs
• Over Current Protection: Inherently Limited
• Operating Temperature: -30 to 140° F
• Dimensions: 2.631” x 2.177” x 2.882” (w/ .500” NPT Hubs)
• Wire Length: 8.0” Typical w/ .5” Strip
• MTBF: 100,000 Hours @ 77° F
• Construction: Split-Bobbin
• Approvals: Class 2 UL5085-3 Listed, C-UL, CE, RoHS
| Electrical | |
|---|---|
| Hertz | 60 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes | Hazardous Material | No |
| Specification | |
|---|---|
| Primary Voltage | 120/208/240/277Vac | Secondary Voltage | 24Vac | Va Rating | 40Va |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 4 | Exterior Dimensions (D) (inches) | 4.000000 | Exterior Dimensions (W) (inches) | 3.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 4.000000 |
