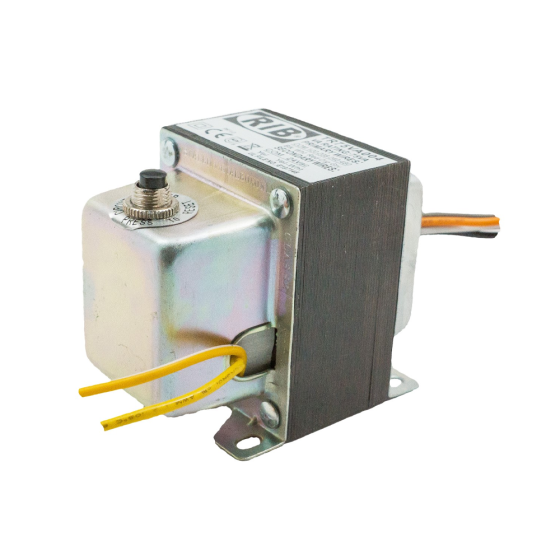

Transformer 120Vac Primary, 24Vac Secondary, 75Va

Item
TR75VA004
  • California Prop 65

FEATURES

The TR75VA004 Transformer is designed for reliable voltage conversion in medium-scale applications and offers circuit breaker protection. It is a mid-sized transformer with a compact footprint, user-friendly configuration, and loads of great features. In other words, this transformer is a stalwart that has found a place in numerous commercial and residential applications.

75 VA Capacity
Suits a range of power needs.

Wide Voltage Input
Adapts to different input sources, including 480, 240, 208, and 120 VAC.

Circuit Breaker Protection
Enhances safety by creating a layer of redundancy.

Foot Mount, Side Opening
Multiple mounting options make installation fast and simple.

Durable and Efficient
The TR75VA004 is efficient and dependable.

SPECIFICATIONS

• VA Rating: 75
• Frequency: 50/60 Hz
• Mounting: Foot & Single Threaded Hub
• Over Current Protection: Circuit Breaker
• Operating Temperature: -30 to 140° F
• Dimensions: 3.802” x 2.515” x 3.050” (w/ .500” NPT Hub)
• Wire Length: 9.5” Typical w/ .5” Strip
• MTBF: 100,000 Hours @ 77° F
• Construction: Split-Bobbin
• Approvals: Class 2 UL5085-3 Listed, C-UL, CE, RoHS
Electrical
Hertz 60
Safety Standards
California Prop 65 Yes
Hazardous Material No
Specification
Primary Voltage 120/208/240/480Vac
Secondary Voltage 24Vac
Va Rating 75Va
Weights and Dimensions
Operating Weight (lbs) 5
Exterior Dimensions (D) (inches) 5.000000
Exterior Dimensions (W) (inches) 3.000000
Exterior Dimensions (H) (inches) 4.000000
Shipping Weight (lbs) 5.000000
