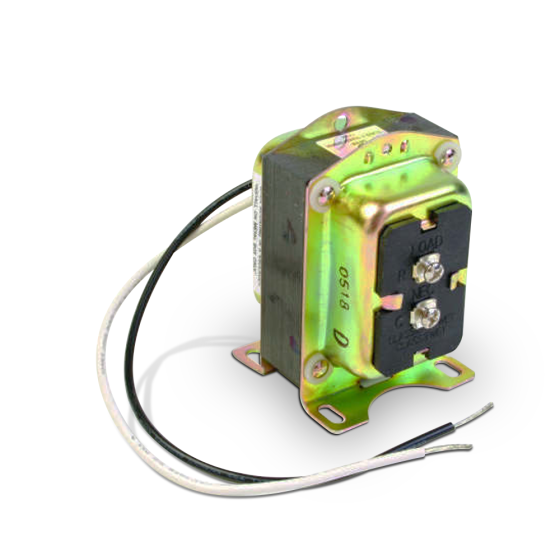

Honeywell® Transformer 120/208/240Vac Primary, 24Vac Secondary, 40Va
Item
AT140A1018C
PRODUCT DETAILS
Honeywell 40 VA general purpose transformers power 24Vac circuits.
FEATURES & BENEFITS
• Color-coded lead wires for primary connections and screw terminals for secondary connections.• Includes fixed 1/4 inch (6mm) male quick-connects (AT140A models only) or color-coded lead wires for primary and secondary connections.
• Meets NEC Class 2 requirements and Underwriters Laboratories Standard UL 1585.
• Identified Class 2 not wet, Class 3 wet.
• Temperature Range(°F): -20°F to +105°F.
• Temperature Range (°C): -29 C to +41 C.
• Electrical Connections (Primary): 9" leadwires.
• Electrical Connections (Secondary): (2) screw terminals.
• Electrical Ratings, Input: 120/208/240 Vac.
• Electrical Ratings, Output; 24 Vac at 40 VA.
| Electrical | |
|---|---|
| Hertz | 60 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Va Rating | 40Va | Secondary Voltage | 24Vac | Primary Voltage | 120/208/240Vac |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 3.000000 | Exterior Dimensions (W) (inches) | 2.000000 | Exterior Dimensions (H) (inches) | 3.000000 | Shipping Weight (lbs) | 1.000000 |
