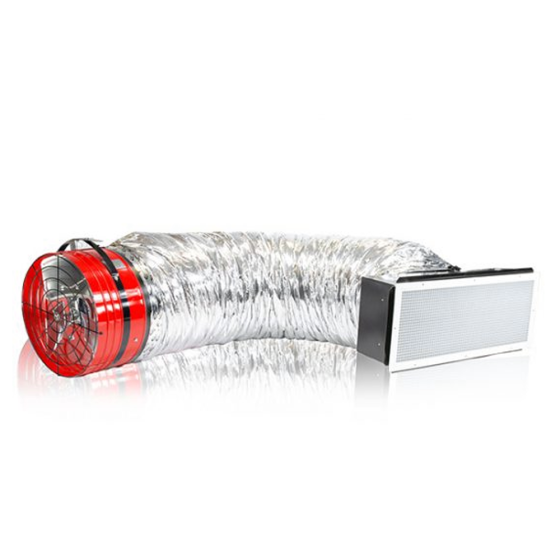

QuietCool® Trident Pro 6.0X Whole House Fan 4,319 to 5,708CFM, 120Vac (1,903 to 2,854sq ft)

APPLICATIONS

Our Trident Pro X Series is the powerful Whole House Fan that is ideal for any home in need of maximum airflow. With our patented design, robust airflow, and reliable production, you can experience supreme cooling.

FEATURES & BENEFITS

• Airflow: Hi: 5,708 CFM / Low: 4,319 CFM
• HVI-916 Airflow (for CA Title 24 New Construction): Hi: 4,150 CFM / Low: 3,190 CFM
• Recommended SQFT Coverage @ 2-3 CFM per SQFT: Covers 1,903 SQFT to 2,854 SQFT
• Energy Use: Hi: 777 Watts / Low: 560 Watts
• Amps: Hi: 6.90 / Low: 5.09
• Motor Voltage: 120 VAC, 60 Hz
• # of Speeds: 2
• dBA: Hi: 51.1 / Low: 44.1
• Minimum Attic Clearance: 42”
• Duct Diameter: 22”
• Duct Length: 9 feet
• Motor Head Diameter: 22 1/2”
• Motor Head Length: 13 1/2”
• Dampers: Barometric Pressurized R5 Dampers
• Controls (Sold Separately): Included: 8 Hr Electronic Timer & HI-LOW-OFF switch (Optional: IT-36002 QuietCool RF Wireless Control Kit)
• Warranty: 15 Years
• Framing: None Required
• Joist Cutting: None Required; fits 16” or 24” on center
• Minimum Suggested Attic Venting: 7.62 SQ FT net free area
• Ceiling Rough Opening: 14 1/4” x 36 1/4”
• Removable Grille Outside Dimension: 16” x 38”

INCLUDES

• QC TRI PRO6.0X Motorhead
• Ceiling Grille
• Cutout Template
• Window Locks
• Damper Box
• 9 Foot Duct
• Accessory Bag
• Controls
