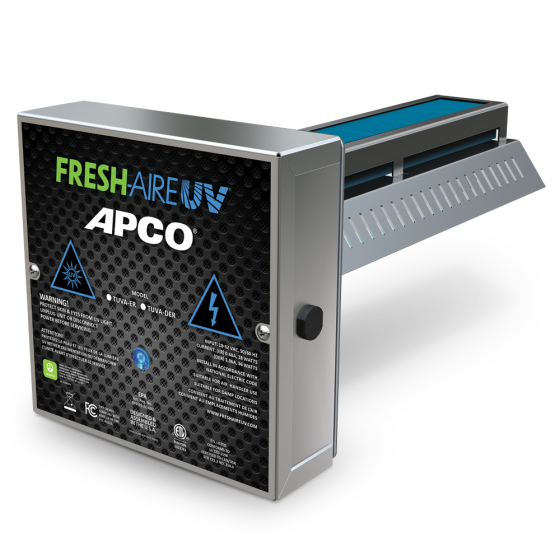

Fresh-Aire UV® APCO Germicidal UV Air Purifier 24V, 15" (2 Year Lamp)

FEATURES

APCO® utilizes proprietary UV-reactive carbon cells to disinfect the air and neutralize odors and volatile organic compounds (VOCs) in the indoor air. The system uses specially prepared adsorption media to capture VOCs, then, with the help of a 254 nm germicidal UVC lamp, the captured constituents are neutralized through an innovative reaction process which breaks them down into elemental carbon dioxide and water vapor.

The monolithic carbon cells in APCO ® are regenerative. Under normal operation it requires no maintenance and does not need to be replaced. Additionally, the UVC light in APCO ® disinfects the moving air stream reducing airborne mold, bacteria, and viruses. The UV light also reduces any build up of mold within the air handler and ducts.

SAFELY AND EFFECTIVELY TREAT THE OTHER 2/3RDS - Conventional filters are only effective against particulates, like dust. APCO® is proven to safely reduce both biological and chemical contaminants inside the air system and throughout the building. Together, they address 99+% of the contaminants in the air.

CLEANS THE COIL AND DRAIN PAN - Helps keep the HVAC system running efficiently and extend its life.

SPECIFICATIONS

• Carbon Cell: Advanced Monolithic Adsorptive Carbon cell with proprietary absorption j and proven TiO2 photo-catalyst
• Cell per In²: 16
• Cell Surface Area: 250 m2/gm
• Bulk Density: 1.44 gm/cm2
• VOC Activity 40-60% absorption per pass
• Max Operating Temp. 400 degrees F
• UV Lamp: 254 nm germicidal UVC, quartz hot filament
• Dimensions Cell & Lamp: 5.8”W x 3.25”H x 13.2”D
• Enclosure: 7.6”L x 7.6”W x 2.2”D
• Electrical: 18-32 VAC, 60 Hz, 0.68 Amps, 16 VA
• Pressure Drop: <0.01” w.c. @ 400 FPM
• Warranty: Lifetime for all parts except lamp

Replacement Lamps
• 1 Year Lamp: TUVL-115
• 2 Year Lamp: TUVL-215
