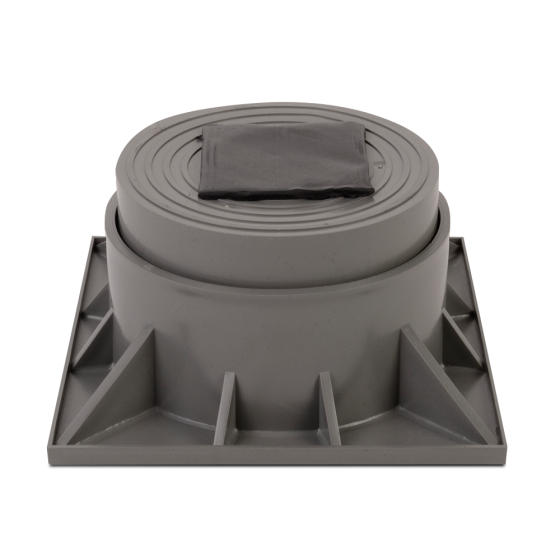

DiversiTech® Two Piece 3" Heat Pump Riser

APPLICATIONS

Heat Pump Risers provide a sturdy and stable solution for adding elevation to a heat pump or air handler.

FEATURES & BENEFITS

• High-pressure injection molded polypropylene – gray color.
• Butyl mastic on the top and bottom guarantees no slipping.
• Thick wall sections and generous reinforcement are employed in the most effective areas, yielding a strong yet lightweight structure. The nestable design allows maximum shipping and storage density.
• An HPR-3-2P Heat Pump Riser can handle a uniform load of 2000 pounds with no failure.
• An HPR-3-2P Heat Pump Riser can handle a point load, applied to one square inch area in center of footpad recess on top of single HPR, of less than 560 pounds with no failure.
• Simply peel the release liner from the mastic before placing the Heat Pump Riser and equipment.
